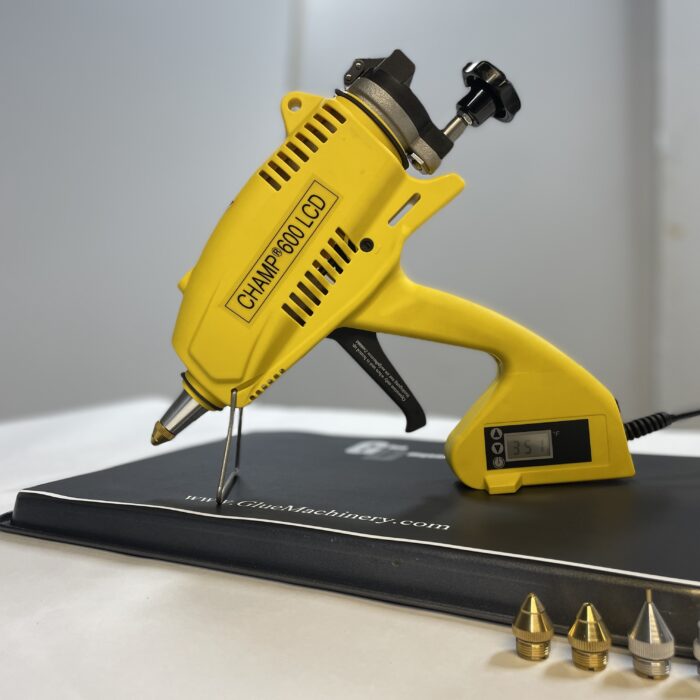

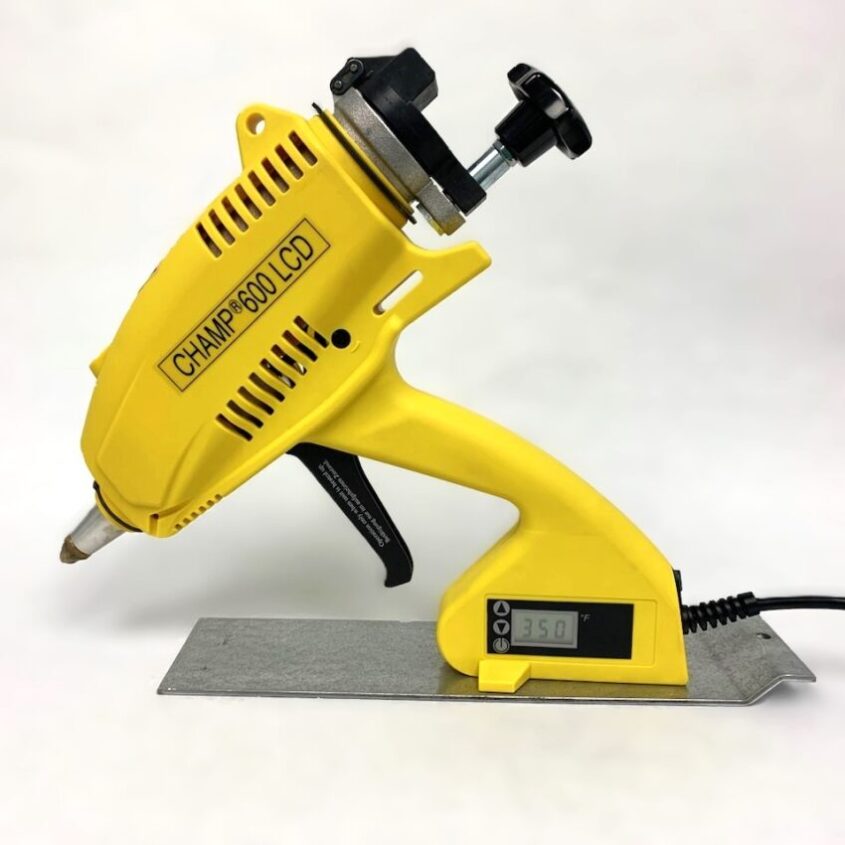

Champ™ 600 LCD Bulk Hot Melt Gun (G05A03-015)Champ 600 LCD1
Champ™ 600 LCD Bulk Hot Melt Gun (G05A03-015)Champ 600 LCD2
Champ™ 600 LCD Bulk Hot Melt Gun (G05A03-015)LCD readout for Champ 600 LCD3
Champ™ 600 LCD Bulk Hot Melt Gun (G05A03-015)4
Champ™ 600 LCD Bulk Hot Melt Gun (G05A03-015)5
Champ™ 600 LCD Bulk Hot Melt Gun (G05A03-015)6
Champ™ 600 LCD Bulk Hot Melt Gun (G05A03-015)Champ 600 cutout7
Champ™ 600 LCD Bulk Hot Melt Gun (G05A03-015)8
Champ™ 600 LCD Bulk Hot Melt Gun (G05A03-015)9
Champ™ 600 LCD Bulk Hot Melt Gun (G05A03-015)10
Champ™ 600 LCD Bulk Hot Melt Gun (G05A03-015)240V Champ 600 LCD11
Champ™ 600 LCD Bulk Hot Melt Gun (G05A03-015)12
Champ™ 600 LCD Bulk Hot Melt Gun (G05A03-015)13
Champ™ 600 LCD Bulk Hot Melt Gun (G05A03-015)Mountable Magnetic Metal Base14
Champ™ 600 LCD Bulk Hot Melt Gun (G05A03-015)Mountable Magnetic Metal Base15
Champ™ 600 LCD Bulk Hot Melt Gun (G05A03-015)Champ Fill Scoop Tube G05E47-01616
Champ™ 600 LCD Bulk Hot Melt Gun (G05A03-015)In Stock for Fast Shipment17

Compatible With:

Hot Melt Adhesives in Bulk Chip form: Permanent, Removable, Packaging and others. (Quality Bulk Adhesives available for use with Champ™ 600 LCD from Glue Machinery Corporation)

Product Manuals / Related PDFs:

Champ 600 + Champ 10 Nozzle Brochure Champ 600 LCD Brochure CHAMP 600 LCD MANUAL

Warning:

Warning:
1. Read and understand Champ 600 LCD manual before operating
2. Only apply hot melt down to substrate
3. Operate when adhesive is molten in chamber only
4. Never tilt the gun back or lay down
5. Always insure back lid is closed before using
6. Do not overfill reservoir
7. Add small quantities of hot melt to the reservoir regularly

** Read Manual Before Operating Any Champ Adhesive Applicator**

Always Wear Protective Gloves, Sleeves and Safety Glasses When Operating Champ Adhesive Applicators
** Champ Adhesive Applicators And Adhesives Are Very Hot; Injury Could Result From Improper Use**

Champ™ 600 LCD Bulk Hot Melt Gun (G05A03-015)

$995.00+shipping

High Performance Hot Melt Handgun 120V Precision Microprocessor Temperature Control 8 oz melt tank in the handgun 2 lb. per hour melt rate, 500 watt heater High Output Piston Pump Trigger 2.0mm check valve nozzle tip Locking tank lid Magnetic handle + retractable wire stand, Adjustable temperature control to400F Gun weight without glue is 3.25 lbs

$995.00

10 in stock

Quantity:

View Cart



Product Videos (Click to View)

Bead Patterns1 Carton Sealing2 Long Complex Carton3 Champ 600 LCD Heating Up4 360 Degree View Champ 600 LCD5 Champ 600 LCD / PSA Polyolefin to Corrugate6 Champ 600 LCD 240V7 Champ 600 GIA1085 Paper Pick Up to Core8 Champ 600 vs Champ 109 5 Hole Nozzle Patterns10 5 Hole Nozzle Flat Ribbon11 Champ Fill Scoop Tube12 Pack and Repack13 FOL End Flaps14

Product Details:

  • Offers precise dots or beads
  • Precise temperature control of hot melt
  • Very fast heat up
  • Industrial durability
  • High flow piston pump trigger mechanism
  • Check Valve nozzle tip to minimize "stringing" and dripping

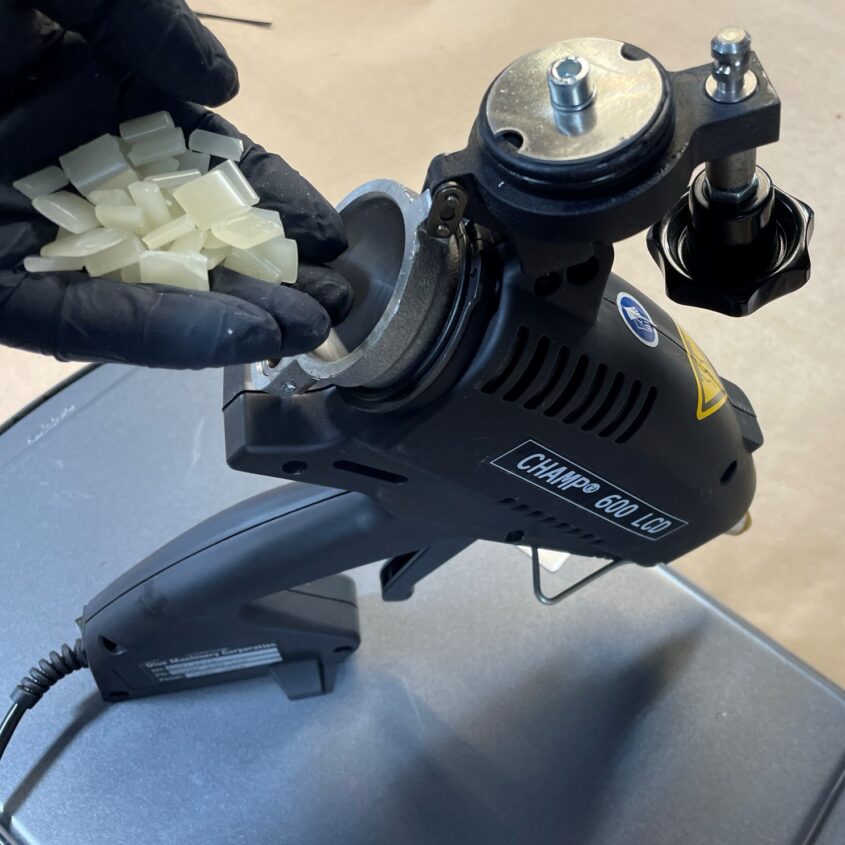

  • Processes bulk hot melt adhesive in chip or pillow form
  • "All Electric", no air required
  • 8 oz. adhesive melt reservoir in gun
  • 2 lb. per hour melt rate depending upon adhesive
  • Adjustable thermostatic temperature control: 250F to 400F (121C to 204C)
  • Multiple nozzle configurations available
  • Gun Weight: 3.25 pounds (without adhesive)
  • Power Requirements: 120VAC=4.16 amp/1ph/50-60Hz- 240VAC=2.08 amp/1ph/50-60Hz
  • Wire stand and magnetic stand gun base to bond to metal table
  • 120 or 240 VAC
  • One nozzles included with each gun purchase
  • Used with standard hot melt adhesive (non-reactive)
  • Operates with hot melt adhesive from 500 to 20,000 centipoise
  • Operates to a maximum of 410° F
