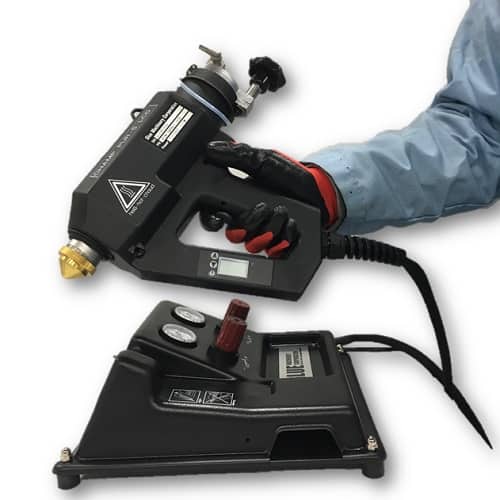

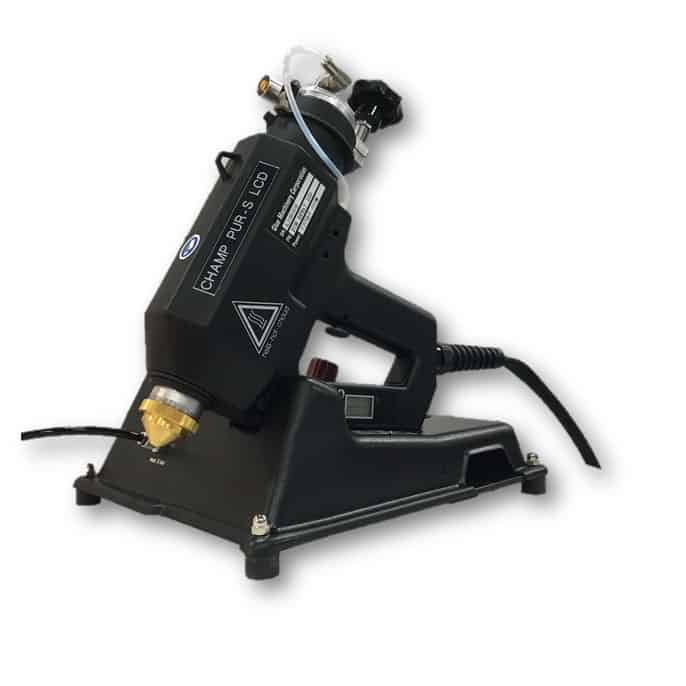

Champ PUR-S LCD2
3
4
310 ml Cartridge: 9" Long, 1.845 Diameter, Thread M15x1.5 5
Half Model Anatomy of 310mL PUR Cartridge6
Half Model Anatomy of 310mL PUR Cartridge7

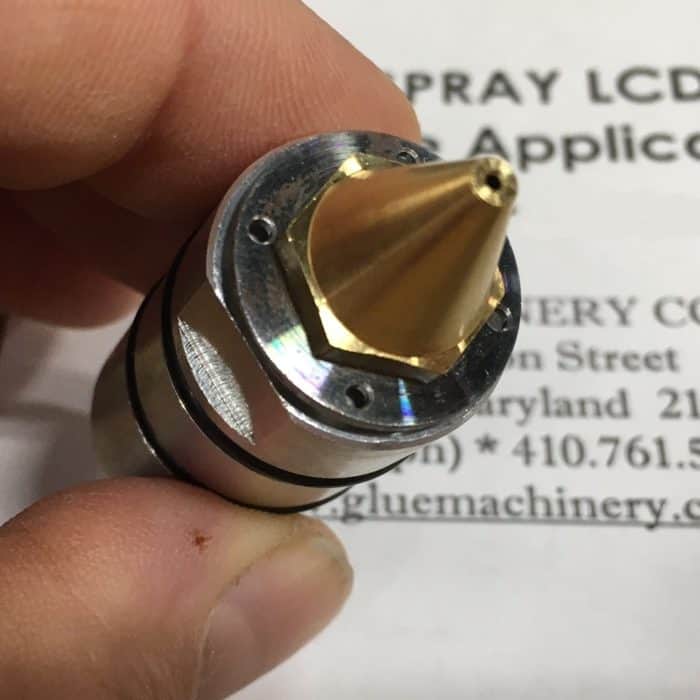

Champ™ PUR-S Spray nozzle8
9
LCD Temperature Readout10
Optional Tool Balancer11
Cartridge Preheater12
Nozzles available with 1, 1.9, 2.5 and 3mm orifice (Nozzles are replacement items and are not rebuildable)13
Champ™ PUR-S Adapter Spray Ring Nozzle14
15
16
17
18

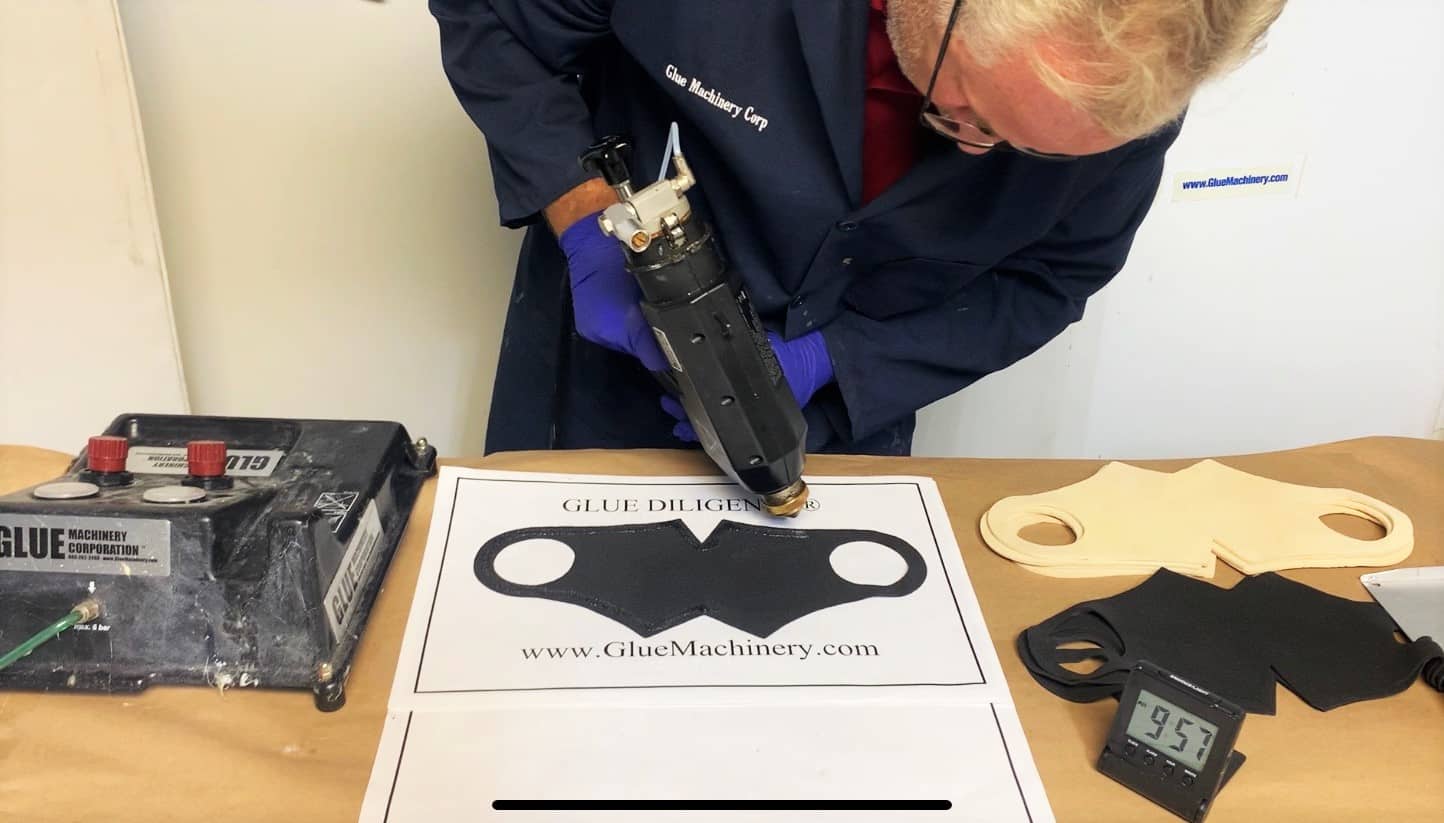

Free Glue Diligence™ Testing Available19
Champ Pneumatic Hot Melt Gun on Custom Stand with footswitch20
310 ml aluminum PUR Cartridge components. Cartridge, Piston, Cap21
310 ml aluminum PUR Cartridge components. Cartridge, Piston, Cap22
310 ml aluminum PUR Cartridge components. Cartridge, Piston, Cap23Compatible With:
Wide range of low to medium viscosity polyurethane reactive hot meltsProduct Manuals / Related PDFs:
Champ™ PUR-S LCD - Cartridge Spray Gun Product Manual is available from Glue Machinery Corporation - 1-888-202-2468 Programming the Temperature ReadoutWarning:
** Read Manual Before Operating Any Champ Adhesive Applicator**
Always Wear Protective Gloves, Sleeves and Safety Glasses When Operating Champ Adhesive Applicators
** Champ Adhesive Applicators And Adhesives Are Very Hot; Injury Could Result From Improper Use**
Champ™ PUR-S LCD - Pneumatic Adhesive Cartridge Spray Gun
Industrial Grade Polyurethane hot melt spray and extrusion gun. The PUR Cartridge Hot Melt Spray Gun melts polyurethane reactive hot melt in 310 ml cartridge form and applies this glue in bead, swirl, and fiber spray form.
$
Product Videos (Click to View)
Demo1 Removable Tank Sleeve Demo2 Felt to Plastic3 Temperature Setting4 Champ™ Spray Demo5 Extruding and Spraying6 Pattern on Fabric7 Video shows Champ PUR S LCD spray gun applying moisture-cure PUR hot melt CJA50088 Champ Spray GIA1041 circle pattern sprayed on Teflon Pan Synthetex9 Champ PUR LCD gun applies a perfect bead of PUR hot melt to bond metal strips to wood10 Gluing fabric backed vinyl to wood11 12 Champ PUR LCD CJA5008 PUR Tile Sample Board Gluing13 Champ PUR-S 310ml Cartridge Nozzle Assembly14Product Details:
Industrial grade polyurethane hot melt spray and extrusion gun with LCD display. Champ Pur-S LCD Power Requirements: 120VAC=5 amp/1ph/50-60Hz. 240VAC=2.5 amp/1ph/50-60Hz. 120VAC 600W, supplied with NEMA 5-15 Style plug, maximum of 15 SCFM at 80PSI, supplied with a ¼ industrial coupling. The umbilical cable back to the gun deck with air regulators that houses the air line and power cord is 15’. The power cord from the gun deck of the umbilical cord is 12’ Gun operates up to 410 F.QUOTE THIS MACHINERY
Champ™ PUR-S LCD – Pneumatic Adhesive Cartridge Spray Gun
