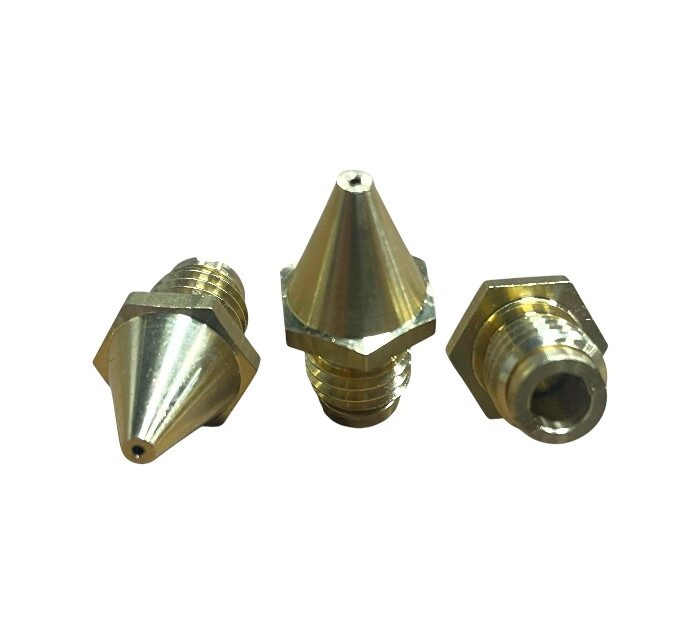

3051 Spray Nozzle Check Valve Adjustment Ring12

Champ™ Premelt Tank with Distillate Gun14

Compatible with the Champ Boom Package17

Champ Distillate With Boom18

Compatible With:

Range of distillate materials
Champ Boom Package

Other Tools also used to apply distillate:
EconoMelt 10 Hot Spray Distillate System- High Volume Spray
Shot Pot Swirl Distillate System– Benchtop Handsfree Spray

Champ™ Distillate Spray Gun

Spray heated molten distillate material with speed, accuracy and low maintenance. Champ Distillate Spray gun eliminates the need for additives. Customer to provide compressed air ( 3.5 SCFM at 80psi)

Champ Distillate glove hand - Glue Machinery Corp

Champ-Distillate-Spray-Stainless-Steel - Glue Machinery Corp

Custom Dual Cartridge Preheater 1 - Glue Machinery Corp — Custom Dual Cartridge Preheater

Genflora distillate tank vent - Glue Machinery Corp — STOP! Distillate coming out fo vent due to overfilling or incorrect operation. Gun lid vent must be cleaned

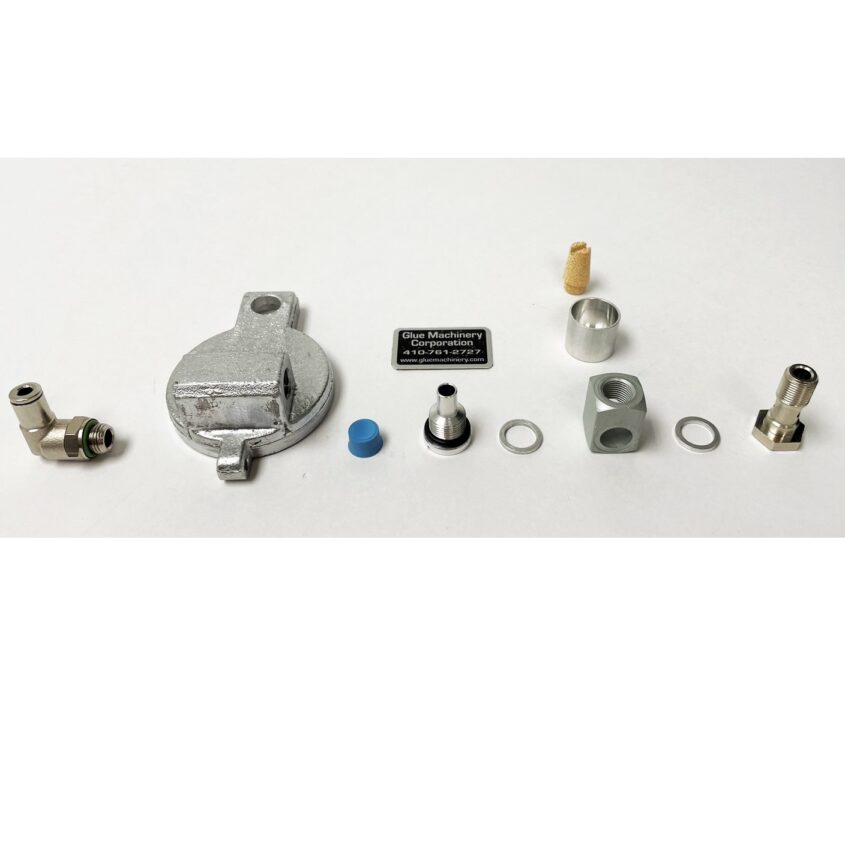

Champ Distillate Lid Parts Replacement - Glue Machinery Corp — Lid Parts Replacement Kit

IMG_9836 - Glue Machinery Corp — Champ™ Premelt Tank with Distillate Gun

champ boom diagram - Glue Machinery Corp — Compatible with the Champ Boom Package

Champ Distillate boom - Glue Machinery Corp — Champ Distillate With Boom

Product Videos (Click to View)

QUOTE THIS ITEM

Champ™ Distillate Spray Gun

Call 1-410-761-2727Or Fill Out The Form Below

Name*
First Last
Email*
Phone
Company*
Message
CAPTCHA
Name
This field is for validation purposes and should be left unchanged.

Product Details:

Handgun is used to spray distillate materials with accuracy
Capable of fiber spraying very small quantities of distillate over large areas
Standard fiber spray looks like cotton candy
Handgun is fully heated with precise PID adjustable temperature controls (most distillates operate at approximately 180F)
Standard Champ Distillate equipment order includes removable tank with adapter, spray ring, nozzle and tank seal
Champ Distillate now available with Stainless Steel removable tank, adapter, nozzle and spray cap
Removable tanks can be taken out of machine and stored with distillate or cleaned
Handgun requires compressed air and 120 V power ( also available in 240V)
Distillate patterns typically 2-3” wide
Customer to melt distillate and pour into removable tank when out of gun
Unmelted distillate in removable tank can be reheated by gun
Gun takes less than 10 minutes to get to temperature ( Unmelted distillate in tank will take 25 minutes to get to temperature)

Machine can spray approximately 200 grams of distillate in 2-3 minutes when operated continuously

Cartridge Premelter available for high production rates. https://www.gluemachinery.com/product/distillate-spray-gun/

Helpful tips*

Always point gun down only. Do not lay gun down, do not rock gun backwards and do not overfill gun

Any distillate on inside of tank lid must be cleaned off before operating

Always extrude fine bead of distillate from nozzle before installing spray cap and attempting to spray

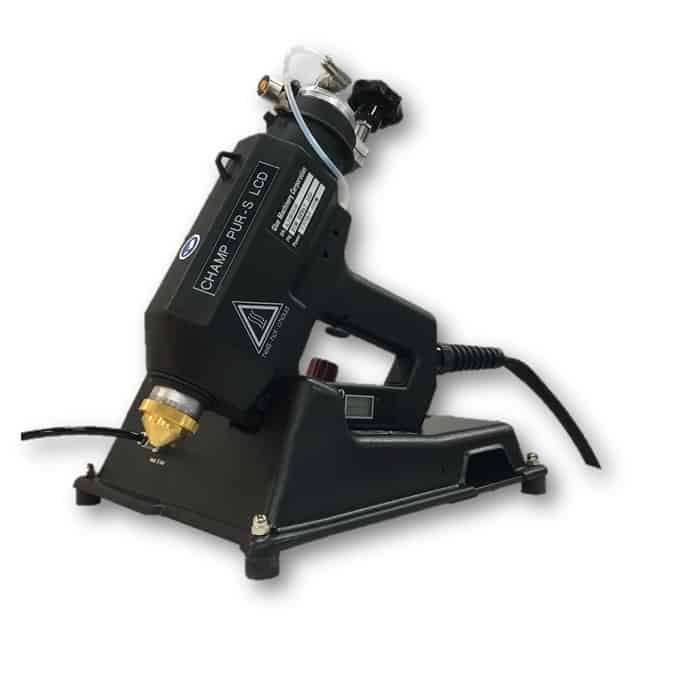

Industrial grade hot melt spray gun with LCD display. Champ PUR -S LCD Power Requirements: 120VAC 600W, supplied with NEMA 5-15 Style plug, maximum air consumption of 3.5 SCFM at 80PSI, supplied with a ¼ industrial coupling.(Customer to contact industrial supplier of compressors for correct air compressor size recommendation). The umbilical cable back to the gun deck with air regulators that houses the air line and power cord is 15’. The power cord from the gun deck of the umbilical cord is 12’
