EconoMelt™ 10-2/4 Hot Melt TankEconoMelt 10-21
EconoMelt™ 10-2/4 Hot Melt TankEconoMelt™ 2 Hose and Gun System2
EconoMelt™ 10-2/4 Hot Melt TankEconoMelt™ 10-4 Temperature Controls3
EconoMelt™ 10-2/4 Hot Melt TankEconoMelt™ 10 has a 10 lb. capacity Teflon lined tank.4

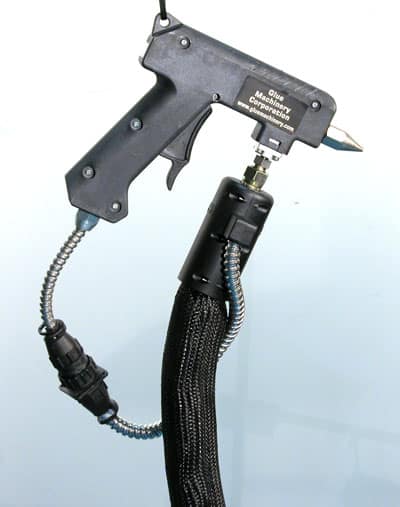

EconoMelt™ 10-2/4 Hot Melt TankEconoChamp™ Handgun5
EconoMelt™ 10-2/4 Hot Melt Tank2 8'-12' Hoses6
EconoMelt™ 10-2/4 Hot Melt TankEconoChamp™ .060 Nozzle7
EconoMelt™ 10-2/4 Hot Melt TankDynaChamp™ Extrusion Gun8
EconoMelt™ 10-2/4 Hot Melt TankEconoMelt™ 10-2 Hot Melt Tank9
EconoMelt™ 10-2/4 Hot Melt TankEconomelt 10
EconoMelt™ 10-2/4 Hot Melt TankHot Melt System Configuration11
EconoMelt™ 10-2/4 Hot Melt TankHigh volume constant pressure piston pump with air motor and pressure relief valve. 12
EconoMelt™ 10-2/4 Hot Melt TankThree thermostat controlled temperature zones.13
EconoMelt™ 10-2/4 Hot Melt TankMulti Module Guns14
EconoMelt™ 10-2/4 Hot Melt TankBead Nozzles + Slot Dies15
EconoMelt™ 10-2/4 Hot Melt TankTop Adjustable16
EconoMelt™ 10-2/4 Hot Melt TankTop Fixed Orifice17
EconoMelt™ 10-2/4 Hot Melt TankBottom Adjustable18
EconoMelt™ 10-2/4 Hot Melt TankCase Erecting19

Compatible With:

All standard hot melt adhesives. (Quality Bulk Adhesives available from Glue Machinery Corporation™)

Product Manuals / Related PDFs:

EconoMelt 10-2 and 10-4 Manual

EconoMelt™ 10-2/4 Hot Melt Tank

Simple, low cost industrial hot melt tank with 10 lb capacity, high flow piston pump, ability to operate with up to two hoses and guns and four hoses and guns.

$

Product Videos (Click to View)

EconoMelt +EconoGun Mini + BuckleFolder1 Glue Drop/Spot Glue System2 Extruding Dots for Conformal Coating3 Foam Assembly on Conveyor4

Product Details:

  • 10 lb tank capacity.
  • 10 to 15 lb / hour melting rate depending on system voltage and adheisve.
  • Air powered piston pump.
  • Max viscosity: 12,000 CPS
  • Max Operation Temp: 220ºC/428ºF
  • Dimensions: 16.93" x 13.39" x 28.74"
  • 15 lbs per hour in 240 VAC
  • Operates with up to two hoses and guns and four hoses and guns
  • Standard hose lengths are 8' and 12'
  • Economelt 10/2/4 Tank Power Requirements: 240VAC=11.25 amp/1ph/50-60Hz.
  • EconoMelt Hose for EconoMelt 10/2/4 Power Requirements: 120/240VAC= 50w per foot.
  • Maximum pump air consumption at 60PSI 1.4 SCFM (30 pump cycles per minute). /li>
**Economelt 10-2/4 supplied with a 10', 10/3 SOOW power cable. Customer required to install correct electrical plug specific to their electrical service onsite.** **Now available configured to operate with Nordson hoses and guns**
