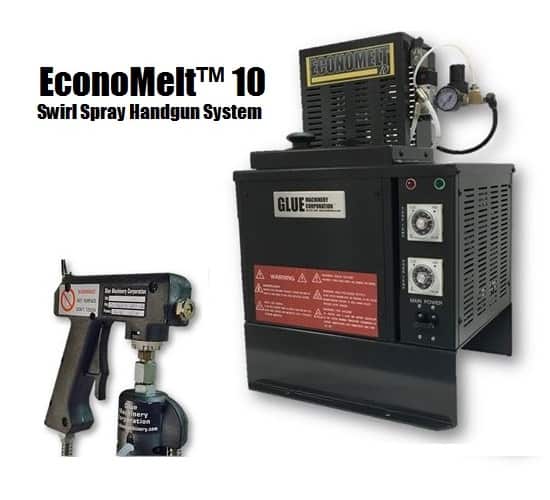

EconoMelt™ 10 Hot Melt Handgun Swirl Spray SystemEconomelt 10 Swirl System1
EconoMelt™ 10 Hot Melt Handgun Swirl Spray SystemEconoChamp™ Swirl Handgun2
EconoMelt™ 10 Hot Melt Handgun Swirl Spray SystemEconoMelt™ 10 Hot Melt Tank3
EconoMelt™ 10 Hot Melt Handgun Swirl Spray SystemSide view of EconoMelt™ 10 – Showing single hose connection panel.4
EconoMelt™ 10 Hot Melt Handgun Swirl Spray System5
EconoMelt™ 10 Hot Melt Handgun Swirl Spray SystemEconoMelt™ 10 has a 10 lb. capacity Teflon lined tank.6
EconoMelt™ 10 Hot Melt Handgun Swirl Spray SystemIndustrial Strength Quality and Materials7
EconoMelt™ 10 Hot Melt Handgun Swirl Spray SystemOptional Hose Boom package available - Inquire for details.8
EconoMelt™ 10 Hot Melt Handgun Swirl Spray System9
EconoMelt™ 10 Hot Melt Handgun Swirl Spray System10
EconoMelt™ 10 Hot Melt Handgun Swirl Spray System11
EconoMelt™ 10 Hot Melt Handgun Swirl Spray SystemEconoMelt Handgun System with Boom and Balancer12
EconoMelt™ 10 Hot Melt Handgun Swirl Spray System13
EconoMelt™ 10 Hot Melt Handgun Swirl Spray System14
EconoMelt™ 10 Hot Melt Handgun Swirl Spray System15

Compatible With:

Traditional Low to Medium Viscosity Hot Melt Adhesives

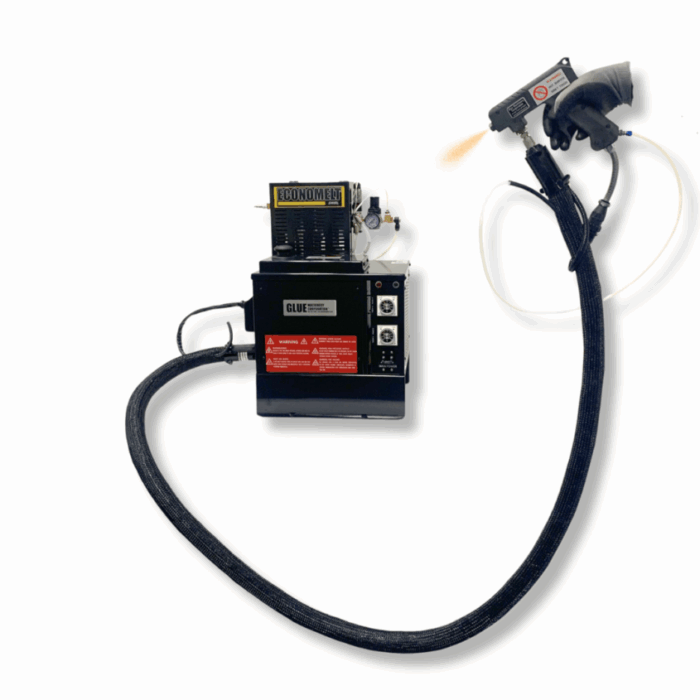

EconoMelt™ 10 Hot Melt Handgun Swirl Spray System

The EconoMelt 10 Hot Melt Handgun System allows you to manually apply random fiber spray, swirl, dot and bead patterns of low cost bulk hot melt with speed and precision. The melt reservoir capacity is 10 lbs., the machine melts 10+ lbs. per hour, the pump will pump up to 1.5 lbs. per minute, the flexible hose is extremely durable and the gun is lightweight and simple to operate. With the EconoMelt 10 Hot Melt Handgun Swirl System, you will increase production and decrease adhesive costs. Please note that we offer free Glue Diligence testing using this machine with your samples received.

$

Product Details:

  • 120 V OR 240 V ( Must be specified by customer)
  • 10 lb tank capacity
  • 7 to 15 lb / hour melting rate depending on system voltage and adhesive
  • Air powered piston pump
  • Max viscosity: 12,000 CPS
  • Max Operation Temp: 220ºC/428ºF
  • Dimensions: 16.93" x 13.39" x 28.74"
  • 10 lbs per hour in 120 VAC and 15 lbs per hour in 240 VAC
  • Operates with one 6, 8 or 12’ hose 120 or  240 V
  • Power Requirements: 120VAC= 16.6 amp/1ph/50-60Hz. 240VAC=8.33 amp/1ph/50-60Hz
  • Also available as a Extrusion  System only to apply beads of hot melt
  • Maximum pump air consumption at 60PSI 1.4 SCFM (30 pump cycles per minute)
  • The EconoMelt™ 10 utilizes analog temperature controllers and type k thermocouples. These analog temperature controllers are factory preset and calibrated to the thermocouple. These do not require re-calibration.
