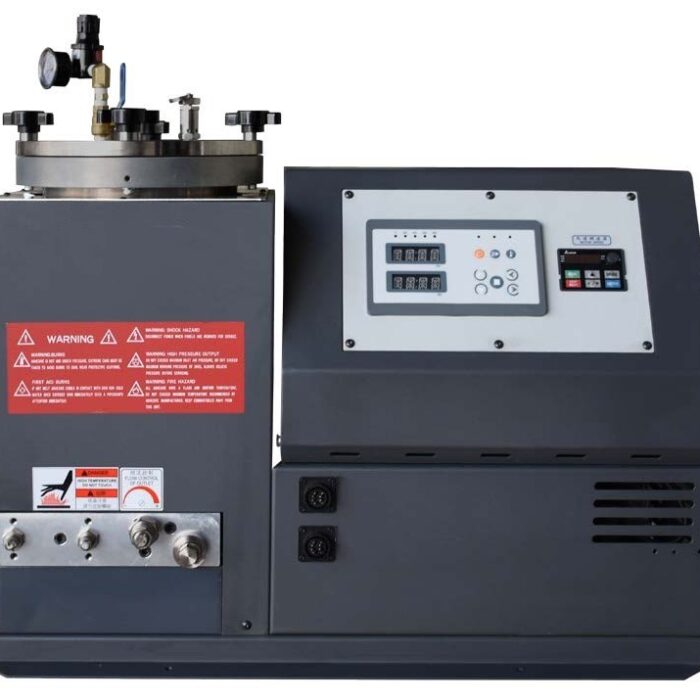

EconoPUR 10kg Slug Melter COMING SOON
COMING SOON
Machine specifically manufactured to process PUR hot melt adhesive
$
EconoGun™ Hot Melt Bead Gun
EconoChamp™
Hot Melt Bead Gun
Product Details:
- Machine specifically manufactured to process PUR hot melt adhesive
- Melt PUR with minimal adhesive curing or degradation
- Easy clean rounded tank design
- All metal construction
- Precision temperature controls for tank and up to two hoses and guns
- Variable speed drive gear pump
- Set back standby
- Seven day scheduler
Specifications:
| Tank Capacity |
10 L |
| Max Melting Rate |
8 kg/hr |
| Max. Operation Temp |
200° C |
| Recommended Viscosity |
20,000 cps |
| Glue Flow per pump |
400 g/min |
| Optional Accessories |
Auto bypass |
| Available hose/gun |
1-2 set |
| Dimensions (L x W x H) |
740 x 390 x 680 mm |
| Weight |
Approx. 75 kg |
| Machine Power Rate |
3300 W |
| Adapter Power Rate |
Hose: 3/8”: 100 Watt/meter 5/8”: 140 Watt/meter
Gun: 100 Watt
Nozzle: 240 Watt |
| Machine Power Requirements |
220v, 22A, 50/60Hz, 1φ |
