Compatible With:

EVA, PSA, APAO and other quality hot melt adhesives available

Glue Diligence® - Free testing of customer substrate and hot melt with this machine

Product Manuals / Related PDFs:

Hot Coat™ 23 Product Manual is available from Glue Machinery Corporation - 1-888-202-2468

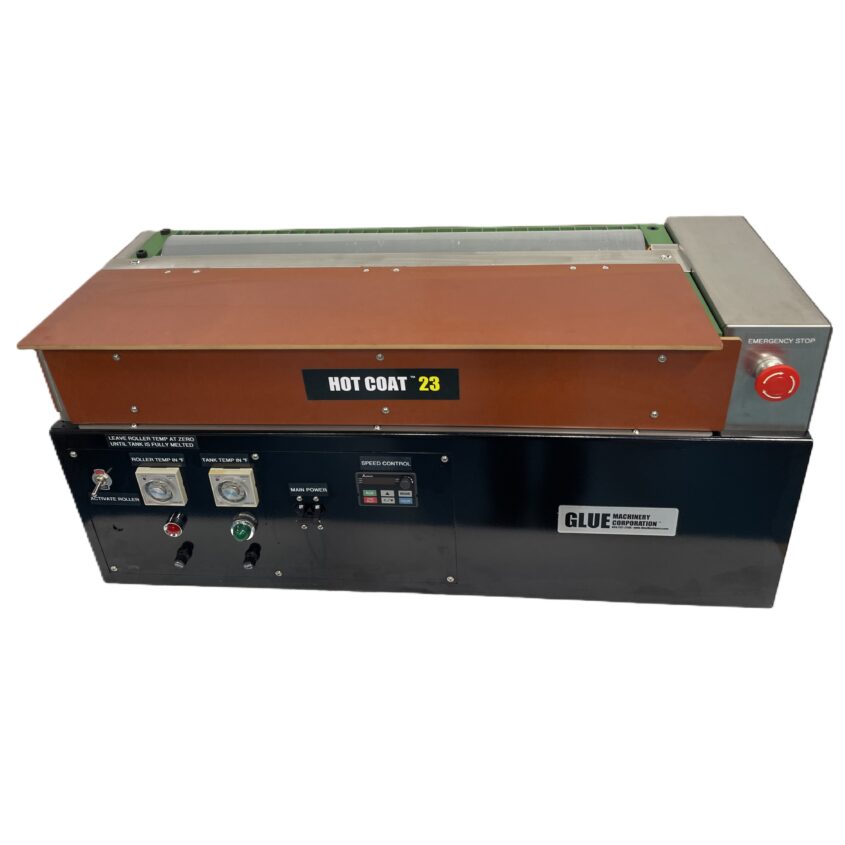

Hot Coat™ 23 Industrial Hot Melt Roll Coater

Industrial 23" Hot Melt Rollcoater with exposed coating wheel for the precise coating of blocks of material such as foam and wood with hot melt adhesive.

$



Product Videos (Click to View)

Foam to Corrugated1 High Production Package2 Removing Hot Melt3 Foam to FRP4 Foam to Corrugate5 6 Hot Coat Polyolefin to Plasticore GIA10747

Product Details:

Wheel InformationDiameter: 3.1519" Circumference: 9.9023'
 Item Machine Specifications
Tank Capacity 11 lbs.
Max Apply Width 23.81" inches
Max Substrate Thickness N/A
Max Operation Temp. 428ºF / 220ºC*
Max Operational Speed FPM 49.5100
Max CPS 20,000
Dimensions (L x W x H) 36.2" x 13" x 19.7"
Power Supply Demand 220 VAC/50-60 Hz
*max operating temperature of 428°F with a (Non-adjustable) low temperature motor enable/lockout of 230°F
  • Variable Speed Motor Drive
  • Large Knurled Seperately Heated Coating Wheel for easy adhesive release to substrate with no stringing.

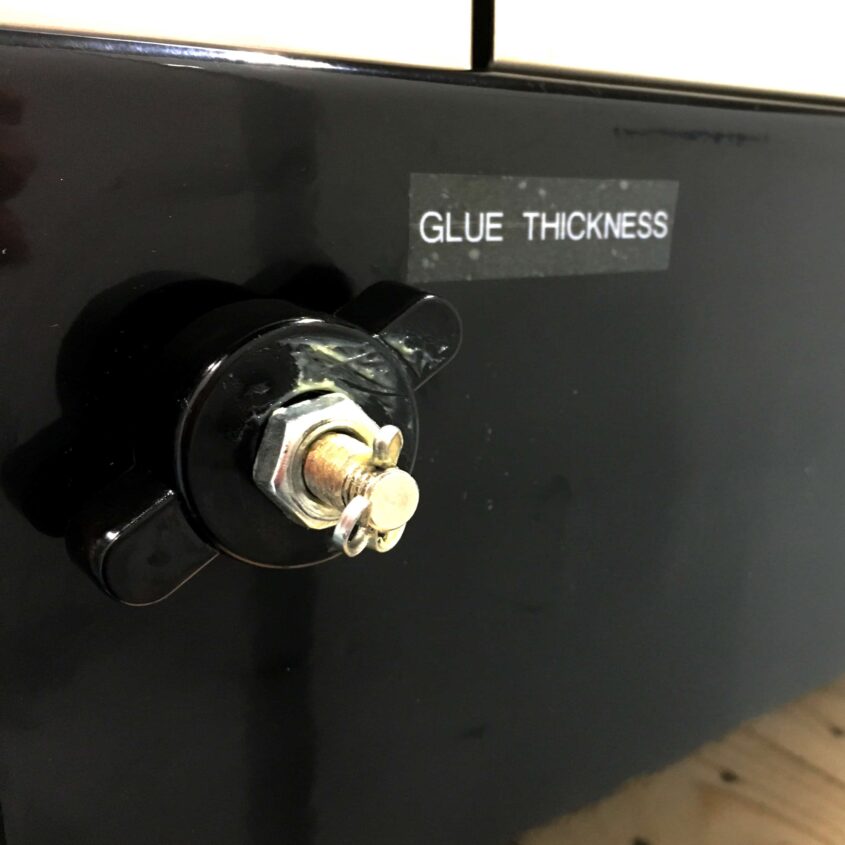

  • Easily adjustable hot melt coat weight on wheel.
  • Adjustable temperature  controls for melter.

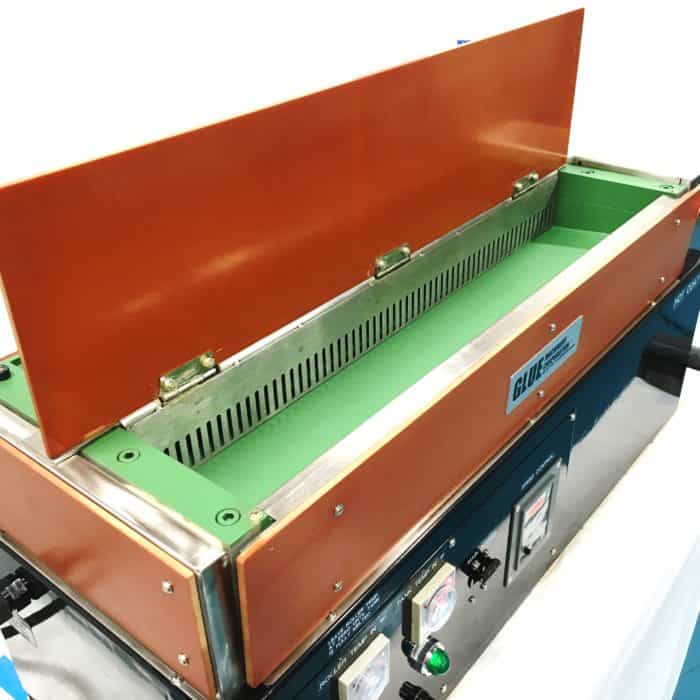

  • Easy access to tank for removal of debris from substrates.
  • Parts and service available with one phone call.
  • 240 VAC
  • 15' , 10-gauge Power Cable Included - No Plug (Customer to provide plug or hardwire)
  • Machine supplied to customer with flying leads on power cable, no plug provided.
