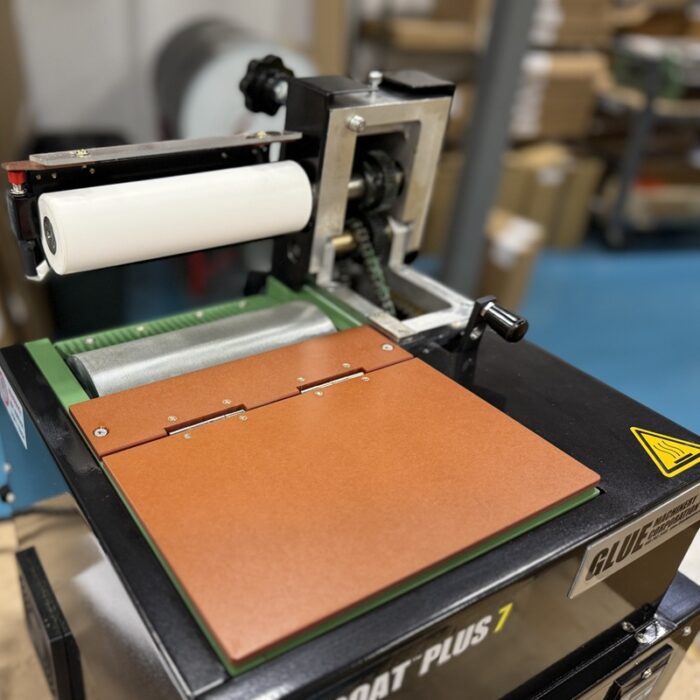

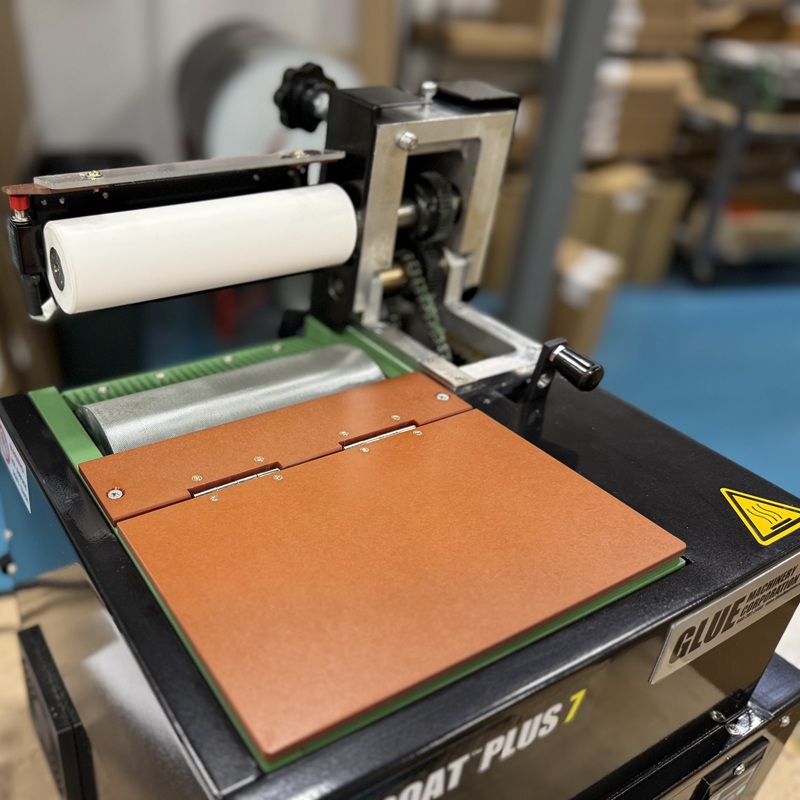

Hot Coat Plus 71
Hot Coat™ Plus 7 - Rear (Wheel) View2
3

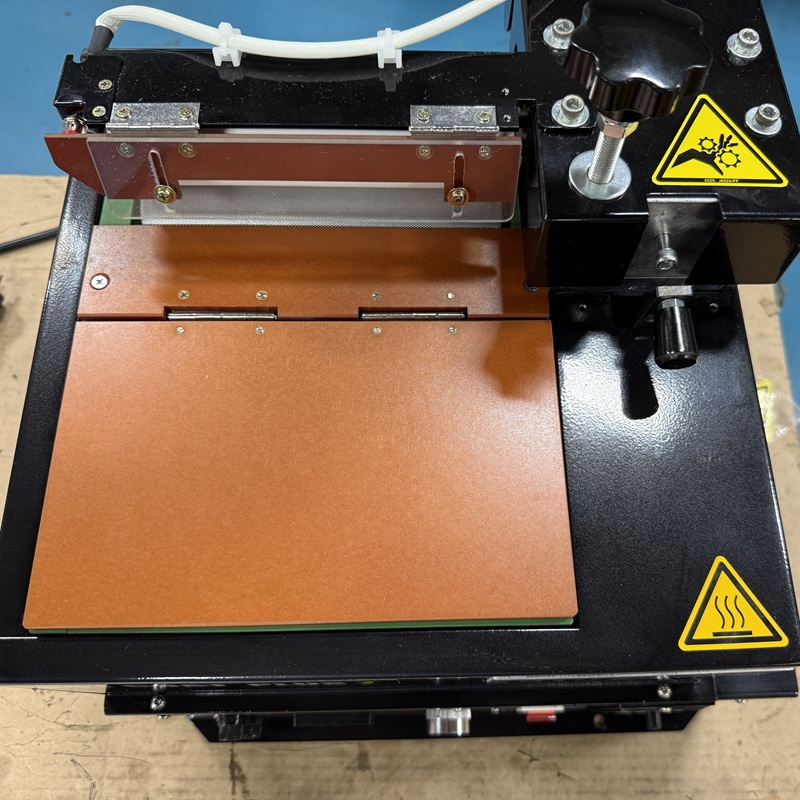

Hot Coat™ Plus 7 - Tank View4
Plug and cable5
Hot Coat Plus glue pattern6
Hot Coat Plus 77
Hot Coat Plus glue pattern8
L6-20 Plug9
Hot Coat Plus Crating10

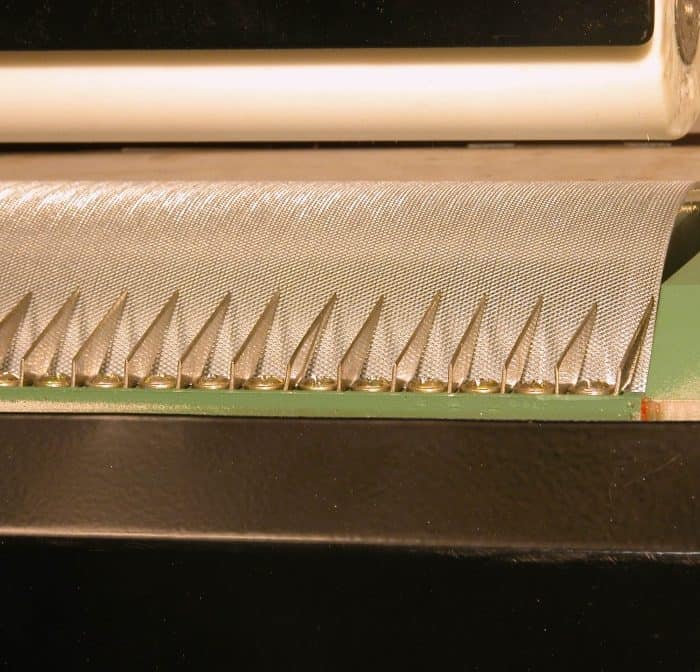

Coating Webs of Wire mesh11Compatible With:
EVA, PSA, APAO and other quality hot melt adhesives available
Glue Diligence® - Free testing of customer substrate and hot melt with this machine
Product Manuals / Related PDFs:
Hot Coat™ Plus 7 Product ManualHot Coat™ Plus 7 Precision Industrial Hot Melt Roll Coater
Economical 7" Hot Melt Roll Coater with urethane covered adjustable drive roller for the precise hot melt coating of thin, rigid substrates from .050" to .40" thick. The Hot Coat™ Hot Melt Coaters insure product quality, accelerated production speeds, long term operation with minimal maintenance and operator friendly ergonomics.
$
Product Videos (Click to View)
Coating Paperboard1 Label to Primed Wood2 Foam to Mylar & Release Liner3 Wax to Paperboard4 PSA to Gasket5 Gluing Signs to Sticks6 Gluing Orthotics7 Light Pattern with Knurled Wheel8 Removing Hot Melt from Tank9 Foil Lid to Blister Pack10 Wood to Paper11 Hot Melt to Glass12 Foam to Fabric13 Swatch Gluing14 Two-sided Cohesive Gluing15 Bonding Thick Leather16 Hot Coat Plus Custom Filter End Cap Gluing17 Apply hot melt to die cut corrugate cardboard with hot melt rollcoater18 Purging Hot Melt from Roller19 MDF Board to Print20Product Details:
- Variable speed motor drive.
- Large knurled coating wheel for easy adhesive release to substrate with no stringing.
- Adjustable hot melt coat weight on wheel.
- Adjustable temperature controls for melter.
- All substrate widths from ¼" to 7"
- All substrate thicknesses to ½" standard
- Can be customized to coat materials to 1"
- Driven top drive roller.
- System available without nip roll for "Open Wheel" gluing.
- Easy access to tank for removal of debris from substrates.
- Parts and service available with one call.
- Hot Coat 7/Plus/Hot Coat 12/Plus Power Requirements: 240VAC=8.3 amp/1ph/50-60Hz.
- 7'8", 12 Gauge Power Cable Included to NEMA L6-20 240V/20amp plug.
- Max operating temperature of 428°F with a factory set (adjustable) low temperature motor enable/lockout out of 212°F
| Item | Machine Specifications |
| Power Supply Demand | 220 VAC / 50-60 Hz |
| Power | 2 KW |
| Net Weight | 106 lb. |
| Size (L x W x H: inches) | 18.5 x 17.5 x 18.5 |
| Tank Capacity (lbs) | 4.2 lb |
| Max Apply Width (inches) | 7.086" |
| Max Substrate Viscosity | .75" |
| Max Viscosity | 20,000 CPS |
| Max Melt Rate | 5.5 lb / hr |
