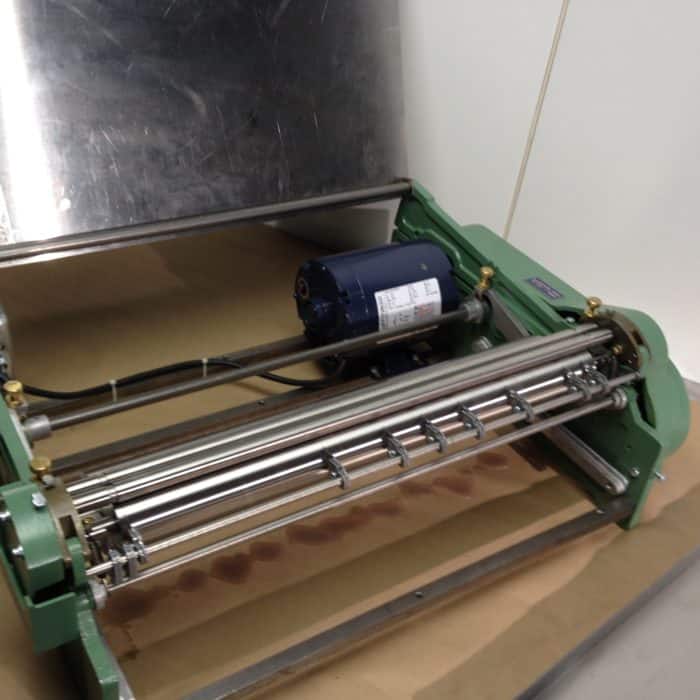

R Gluer - Standard Paper and PaperboardR Gluer Opened4
R Gluer - Standard Paper and PaperboardR Gluer Opened5
R Gluer - Standard Paper and Paperboard6
R Gluer - Standard Paper and Paperboard7
R Gluer - Standard Paper and Paperboard8
R Gluer - Standard Paper and Paperboard9
R Gluer - Standard Paper and Paperboard10
R Gluer - Standard Paper and PaperboardR Gluer Opened11
R Gluer - Standard Paper and PaperboardR Gluer - Roller Label Gluer12
R Gluer - Standard Paper and PaperboardGlue Coat Weight Adjustment13
R Gluer - Standard Paper and PaperboardR Gluer - Roller Label Gluer14
R Gluer - Standard Paper and PaperboardR Gluer - Roller Label Gluer15
R Gluer - Standard Paper and PaperboardR Gluer - Roller Label Gluer16
R Gluer - Standard Paper and PaperboardR Gluer Dimensions17
R Gluer - Standard Paper and PaperboardR Gluer Coating Mesh18

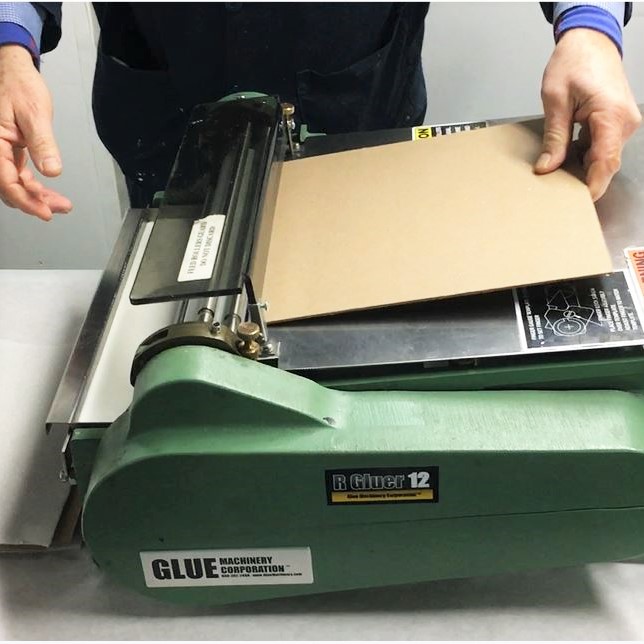

R Gluer - Standard Paper and PaperboardR Gluer Coating Paperboard19
R Gluer - Standard Paper and PaperboardR Gluer Gluing Compact Insert20
R Gluer - Standard Paper and PaperboardR Gluer Coating Die-Cut Corrugated21
R Gluer - Standard Paper and PaperboardR Gluer with Thick Board Coating Option22

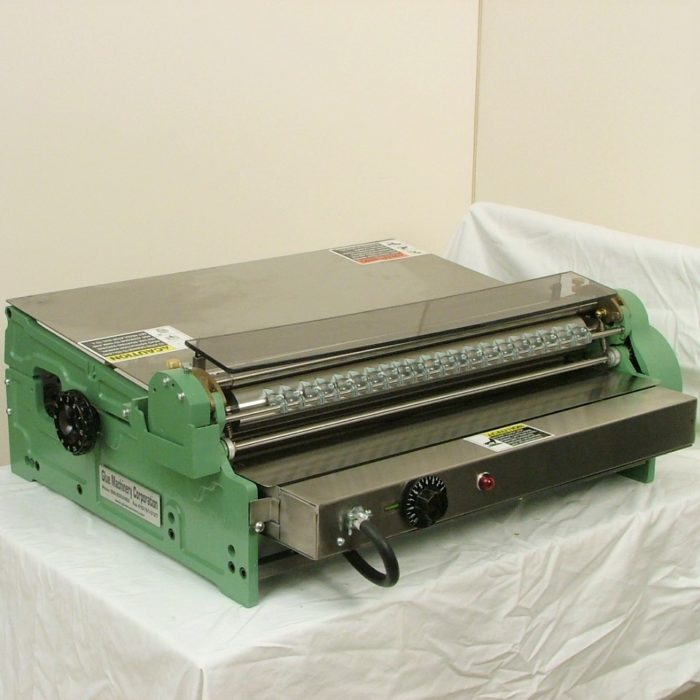

R Gluer - Standard Paper and PaperboardR Gluer w Heated Tank for use with hot animal glue23

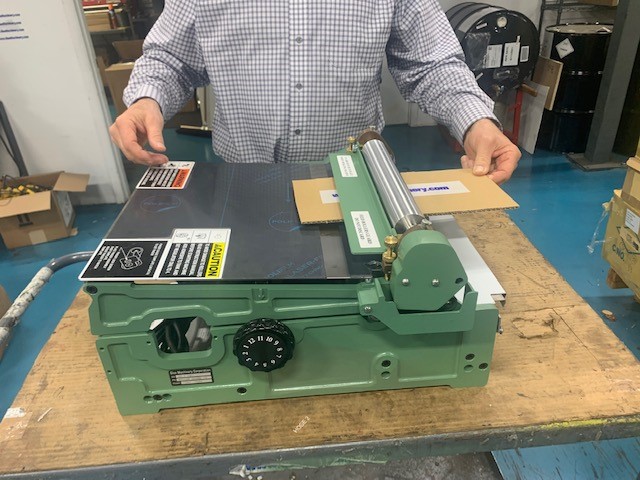

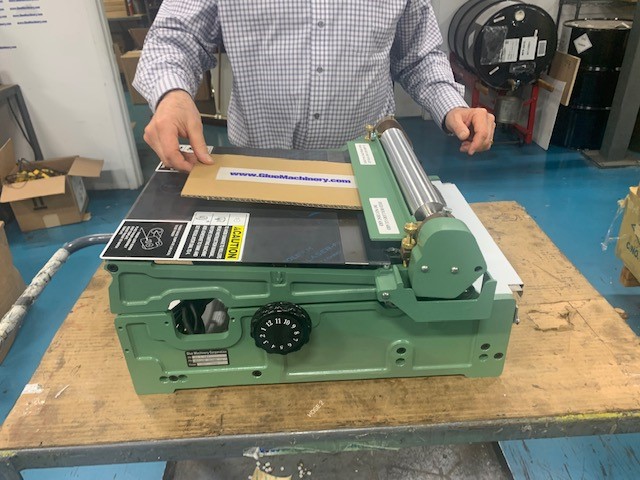

R Gluer - Standard Paper and PaperboardR Gluer with Thick board attachment24
R Gluer - Standard Paper and PaperboardR Gluer with Thick board attachment25
R Gluer - Standard Paper and PaperboardR Gluer with Thick board attachment26
R Gluer - Standard Paper and PaperboardR Gluer with Thick board attachment27
R Gluer - Standard Paper and PaperboardR Gluer with Thick board attachment28
R Gluer - Standard Paper and Paperboard29
R Gluer - Standard Paper and Paperboard30
R Gluer - Standard Paper and PaperboardR Gluer Stand with Casters31
R Gluer - Standard Paper and Paperboard32
R Gluer - Standard Paper and Paperboard33

Product Manuals / Related PDFs:

R Gluer - Roller Label Gluer Product Manual is available from Glue Machinery Corporation - 1-888-202-2468

R Gluer - Standard Paper and Paperboard

The R Gluer applies water based glues with absolute precision to thin flexible substrates up to semi rigid materials to 1/8” thick. With the Thick Board attachment option customers apply glue to paperboard up to corrugated and  other materials to 3/8” thick Simple to operate, easy to clean. Available in roller widths of 9, 12, 15, 18, and 21 inches. The full load amperage requirement for the 120V R Gluer  is 6.4Amp/50-60Hz.

$

Product Videos (Click to View)

Copy paper to copy paper1 Thick Business Cards2 R Gluer 21 Coating Corrugate3 Duplexing Invitations4 Duplexing Business Cards Quickly5 Duplexing Invitations6 Lamination Demo7 Die Cut Paper Coating8 Paper Fan Production9 Paperboard Compacts10 Closeup of Roller11 Tile to Mesh12 Thick Board Attachment gluing die cut corrugate13 Open Wheel Corrugate Pallet Stringer14 Cleaning R Gluer15 Set up for Gluing Paperboard16

Product Details:


    • Micrometer adjustable coat weight controls.
    • Standard unit coats thin paper to 1/8” board material
    • Thick Board attachment option coats materials to .375” thick
    • 120 V – 240 option additonal
    • All metal construction
    • Roll to roll coating
    • Adjustable top drive rollers
    • Constant speed, 40 FPM ( Variable speed option available)
Materials laminated with water-based adhesives must be compressed. In some cases, the glued substrates must be held in compression until the glue bond has dried completely.
