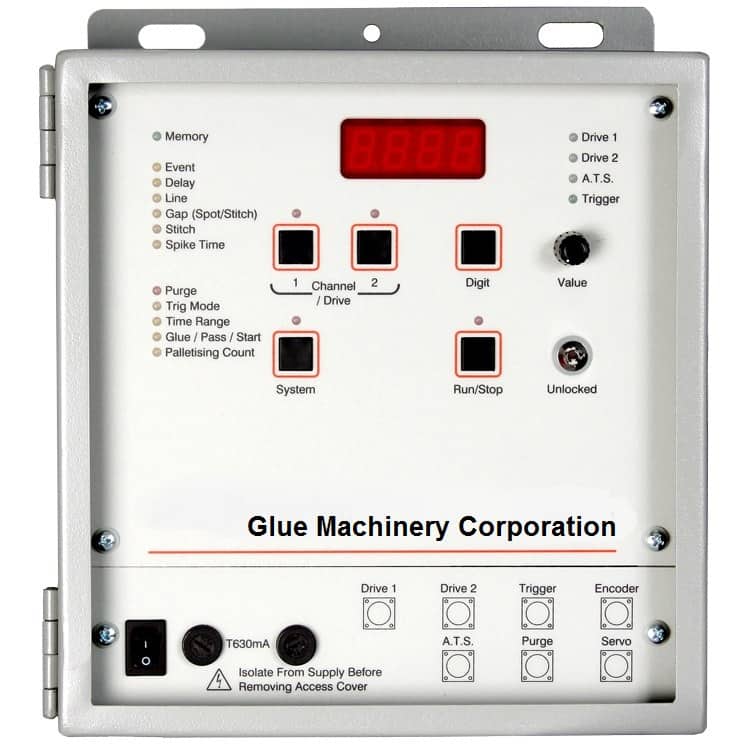

Two-Channel Programmable Glue Pattern Controller

Product Info:

This prgrammable two-channel glue pattern controller timer is capable of a range of patterns and is perfect for the automatic application of hot melt and cold glue with speed, accuracy and repeatability.

Product Details:

  • Hot Melt or Cold Glue System Compatible
  • Time Based 2 Channel Controller
  • “On-the-Fly” Program Adjustments
  • Ability to Retain 4 Programs
  • 4 Glue Pattern Events per Channel
  • Keyed Lock Programming Security
  • Glue Applicator Purge Control
  • Palletizing Application Control Function
  • Power Off Program Retention
  • IP-54 Enclosure

Operating Temperature: 32°F to 113°F (0°C to 45°C)
# of Channels: 2
# of Programs: 4
# of Events per Program: 4
Output Voltage: 24VDC
Output Wattage: 26 watts per channel
# of Triggers: 1
Trigger Input Signal: NPN or contact closure
Max Adjustable Range (operator selectable): .001 to .001 to 1.999 sec (1 millisecond increments) or .01 to 19.99 sec (1 centisecond increments)
Power Supply/Input Power: 120 or 240 VAC 50/60 Hz, L1/N/PE / 60 watts

Dimensions
Height (H): 1 12 in (29 cm)
Depth (D): 5.25 in (13 cm)
Width (W): 1 10 in (25 cm)
