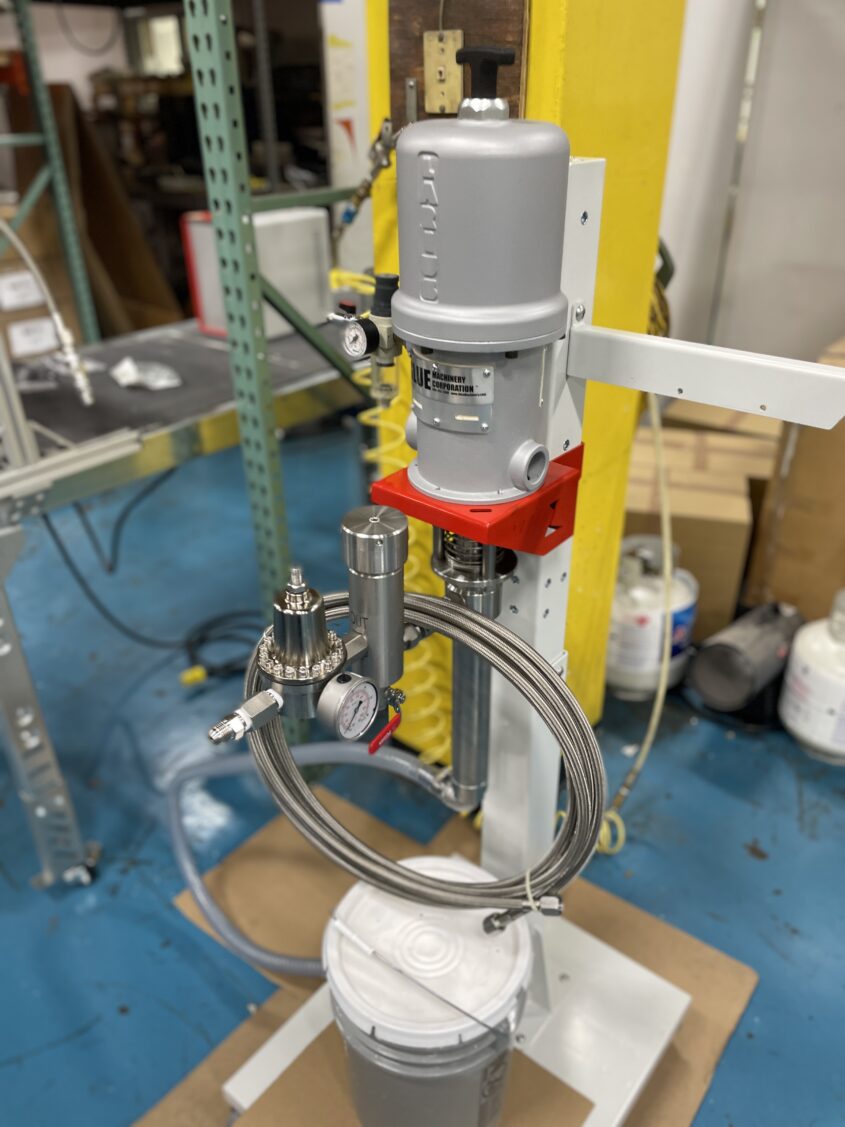

2Z Glue 5:1 Piston Pump / Variable Volume
Stainless steel piston pump 5:1 ratio, suction pipe with filter, bottom valve, stainless steel filter/pulsation dampener and 5:1 manual stainless steel pressure regulator.
$
Product Details:
- Double effect pneumatic piston pump with 5:1 ratio. All components in contact with fluid are made of stainless steel to avoid the oxidation. The air side is separated from the fluid side thanks to a chamber with oil to avoid, in case of leakage, the transfer of the fluid in the air side
- Air pressure regulator with manometer and anti-condensation filter (inlet)
- Bracket for piston pump
- Stainless steel Filter/pulsation dampener
- Manual stainless steel fluid pressure regulator with manometer (outlet)
- Suction pipe of the fluid
- Bottom valve with filter
- Flexible connection pipe for pump and suction pipe
- Lid made of PVC with handles
- Hinged flap lid with knob
- Bucket made of HDPE for the storage of the fluid
- Float Level sensor (optional) to indicate the minimum fluid level into the bucket.
| Pump Ratio | 5:1 |
| Line air supply | (87 psi) max 6 bar |
| Air inlet connection | G1/4” |
| Maximum fluid viscosity | ~4000cps |
| Working pressure | (14-435 psi) from 1 to 30 bar |
| Fluid outlet connection | G1/2” |
| Weight | 50lb (23kg) |
| Bucket capacity | 7.4 gal (28liter) |
