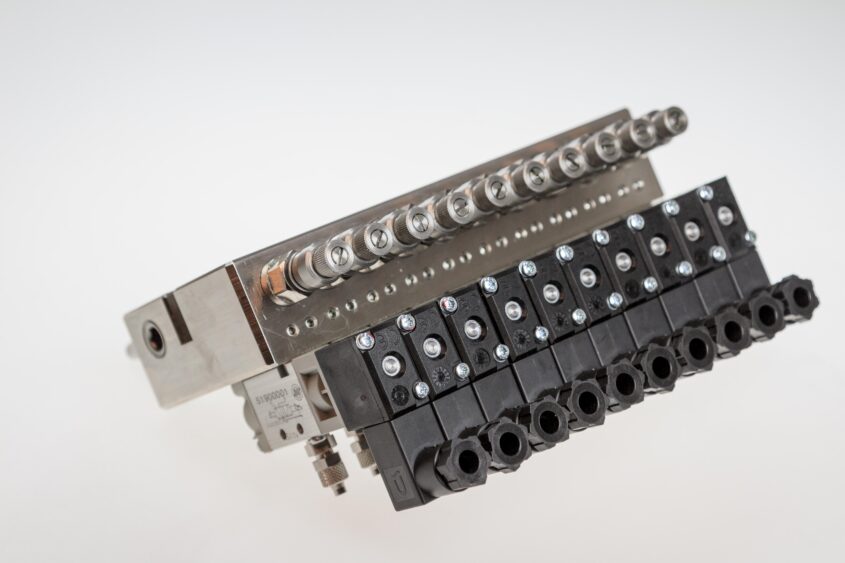

Z Glue Squirt Gun - Multi Line1
Z Glue Squirt Gun - Multi Line2
Z Glue Squirt Gun - Multi Line3
Z Glue Squirt Gun - Multi Line4
Z Glue Squirt Gun - Multi Line5
Z Glue Squirt Gun - Multi Line6
Z Glue Squirt Gun - Multi Line7
Z Glue Squirt Gun - Multi Line8
Z Glue Squirt Gun - Multi Line9

Z Glue Squirt Gun - Multi Line

Available to apply precise lines and dots of low viscosity water based adhesive on fixed centers. This machinery is available with common programming for one pattern from all nozzles or individual programming for each nozzle.


Product Videos (Click to View)

Z2 Pattern Controller on Flexo Folder Gluer1

Product Details:

Available with range of nozzles.     System is available with multiple guns, solenoid lines, fluid manifolds,  range of  pressure vessels diaphragm pumps and piston pumps. Timers and Variable Speed Pattern controls are available to meter glue from all guns   ·      Compact Design: Many nozzles can fit on one custom manifold ·      Fast Response Time: Short stroke 4-way valve combined with low mass needle assembly results in fast response time. ·      Sealed Tip: Sealed tip design eliminates the possibility of adhesive drying and plugging ·      Electro-Pneumatic Actuation: An electric signal triggers a pneumatically piloted spool valve which shifts and opens the adhesives outlet. ·      Diaphram Seal: Unique diaphragm seal between fluid and air sections; no wetted seals to wear out, leak, adjust, or jam. ·      Serviceability: "Breakaway" disassembly - all internal parts are quickly accessible for ease of field maintenance. ·      Adjustable: Fully adjustable fluid volume. Fluid adjustment may be locked at set position. ·      Durable: Metal parts are plated brass or anodized aluminum; stainless steel needle and fluid nozzle for long life. ·      Voltage Selection: 24VDC and 115 VAC are standard. 12 VDC available upon request. ·      Push fitting: Convenient at air input points for ease of installation.


Z Glue Squirt Gun – Multi Line
