DS Simplicity Hot Melt Units

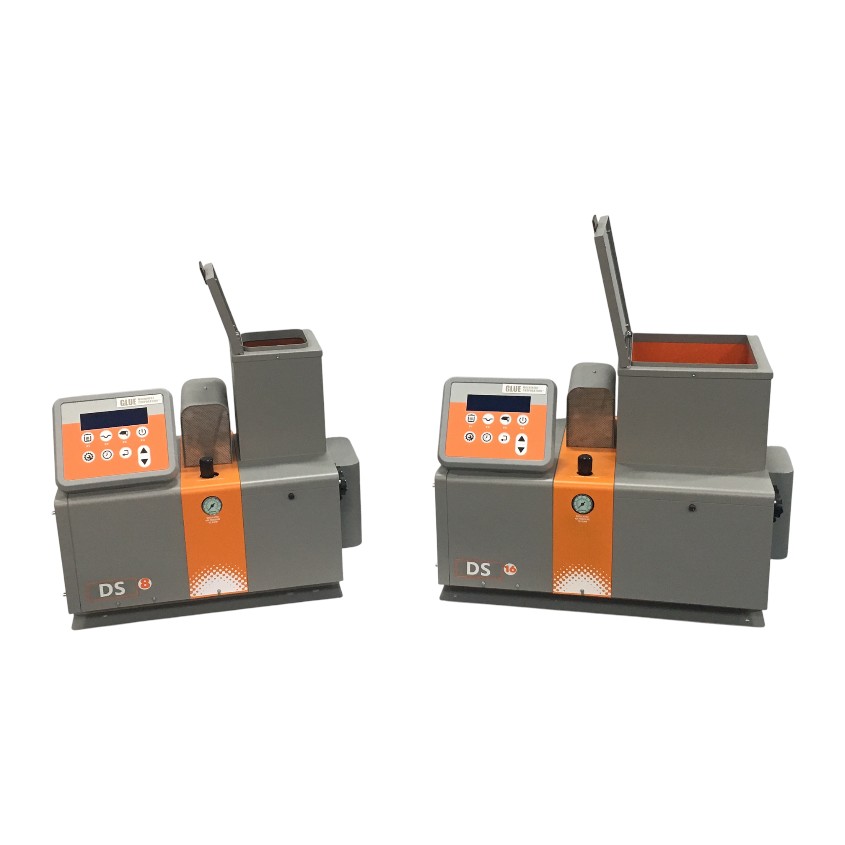

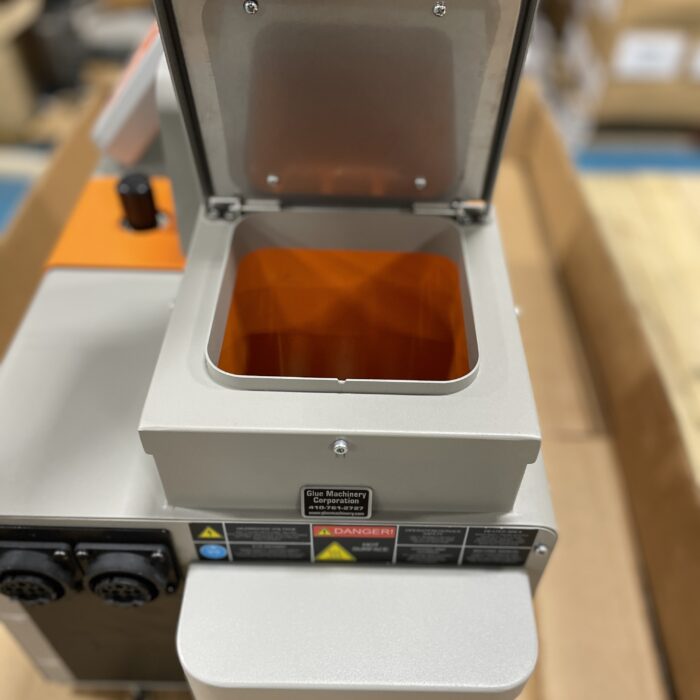

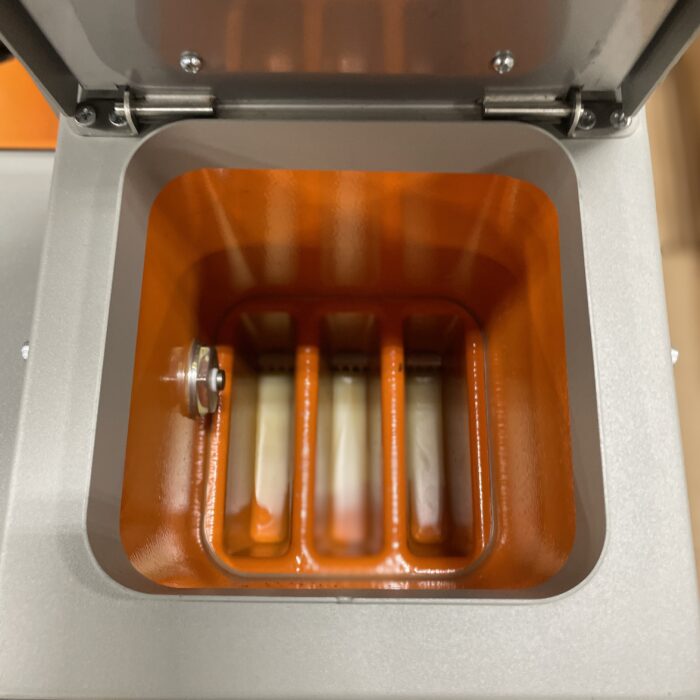

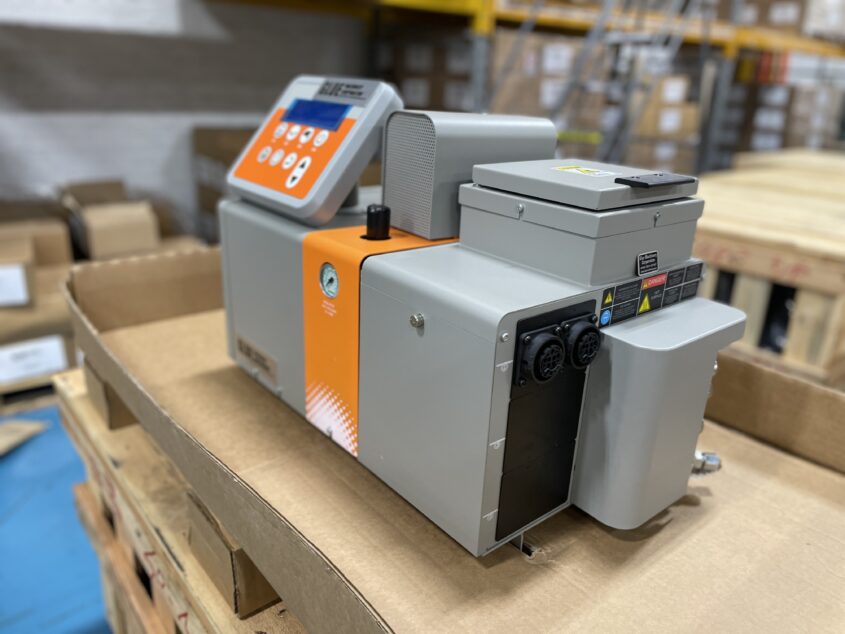

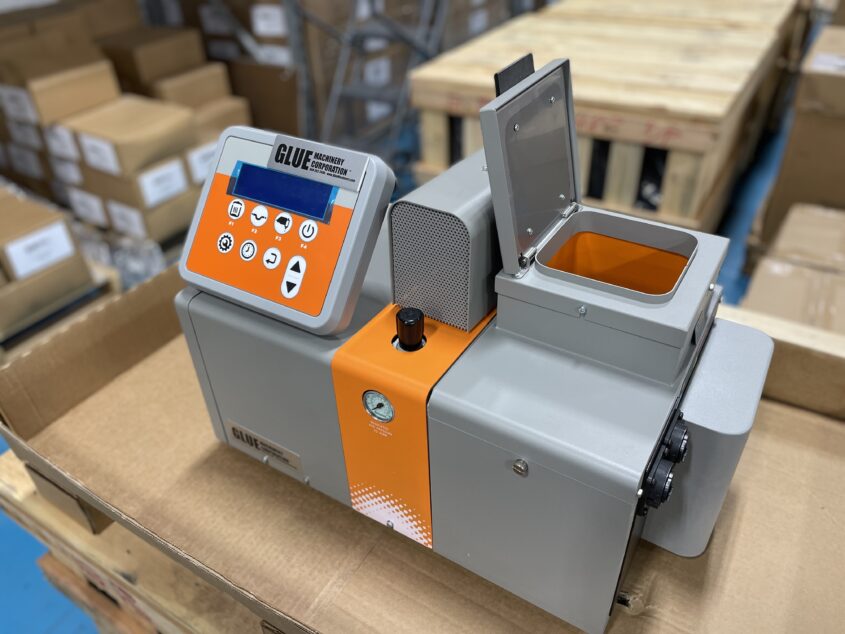

The DS 4, 8, 16 Hot Melt Units are simple, industrial hot melt tanks with constant pressure piston pumps, precision controls, and thorough glue filtration.

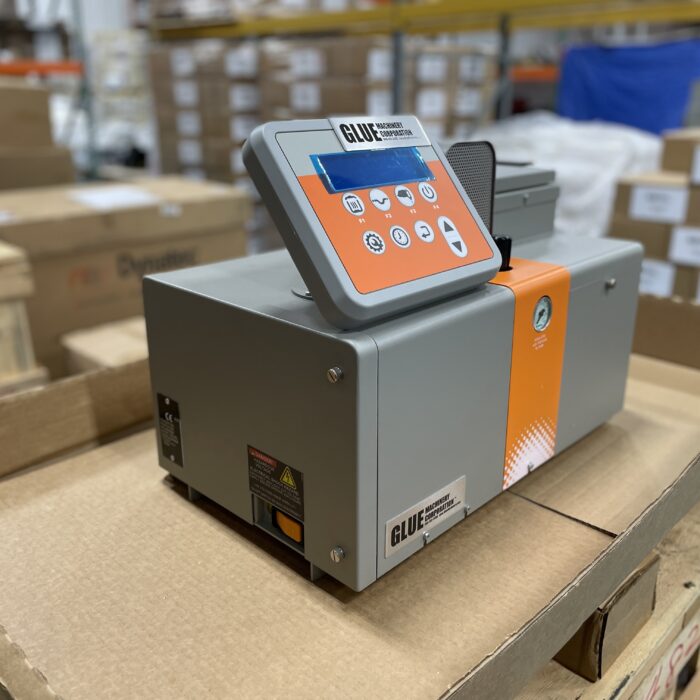

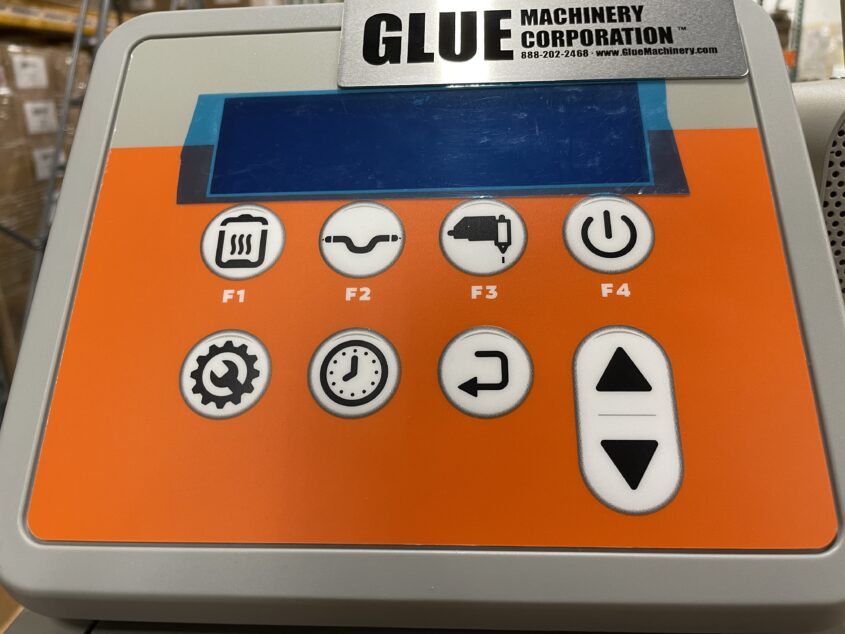

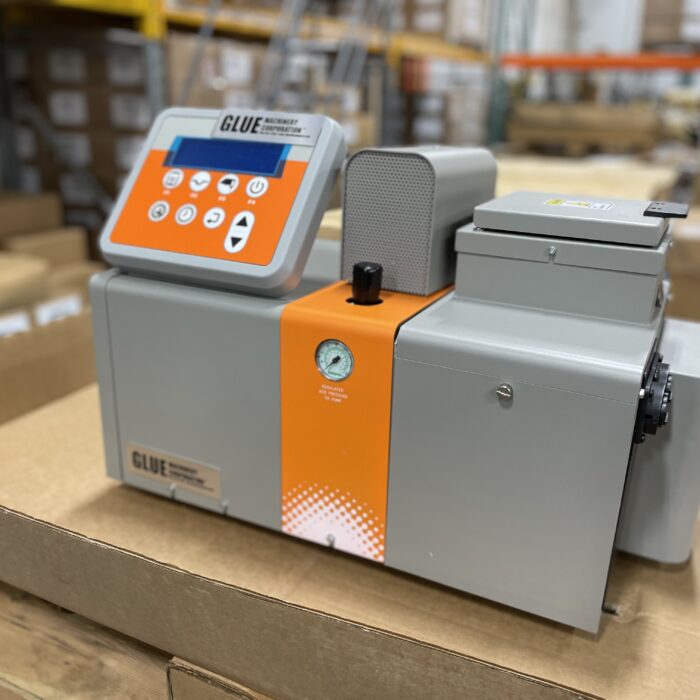

DS temperature control panel — DS Temperature Control Panel

air piston pump control — Air Piston Pump Control

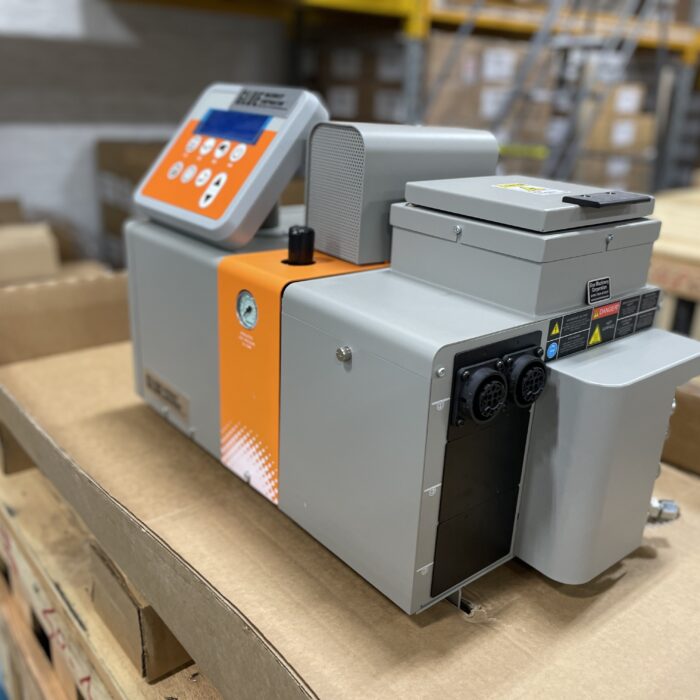

two hose gun electrical plug expandable to 4 and 6 — 2 hose gun electrical plug expandable to 4 and 6

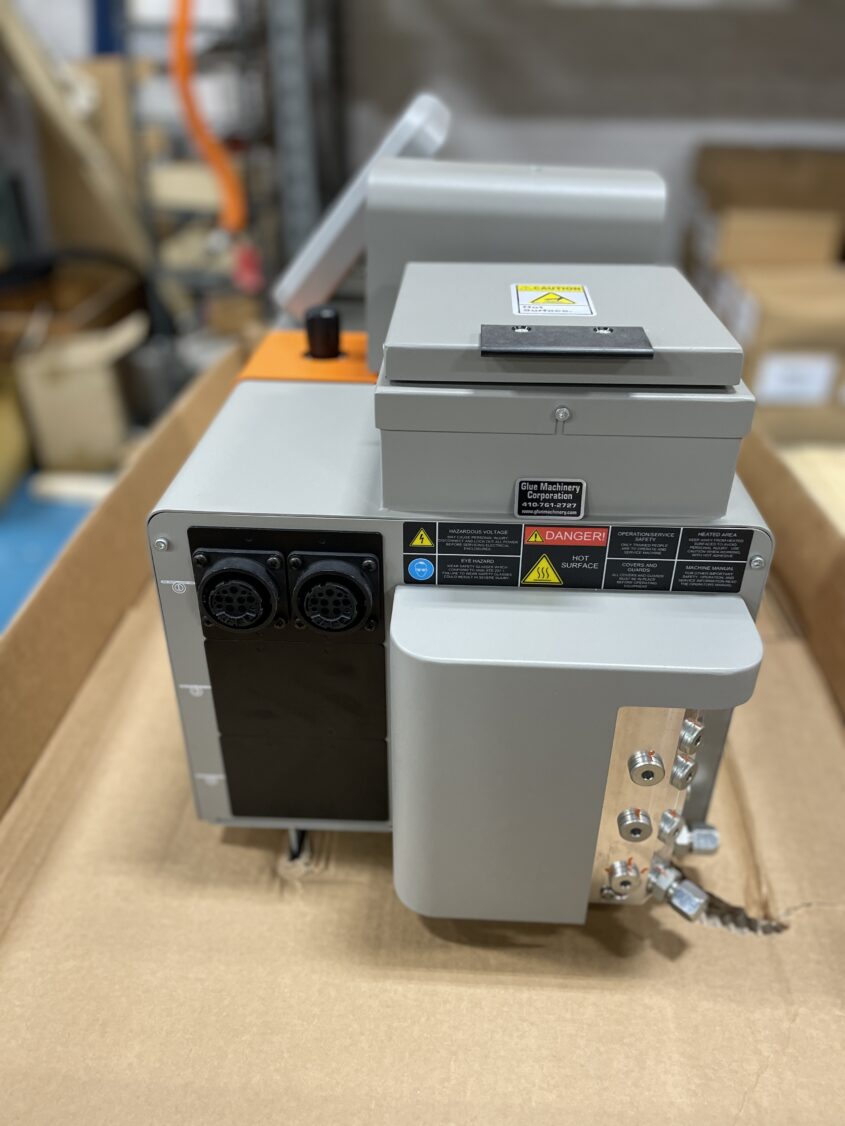

hose outlet manifold with filter and pressure relief valve — Hose outlet Manifold w/ Filter and Pressure relief valve

optional nitrogen blanketing — Optional Nitrogen Blanketing

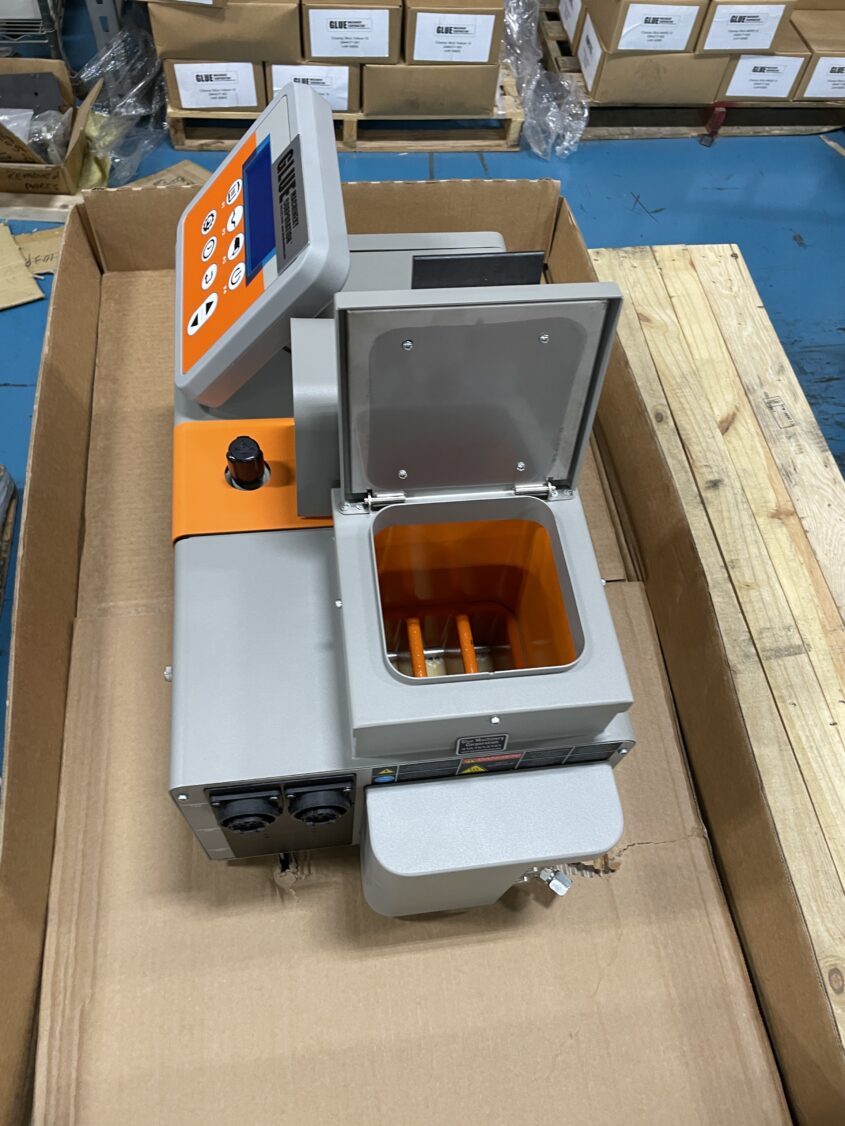

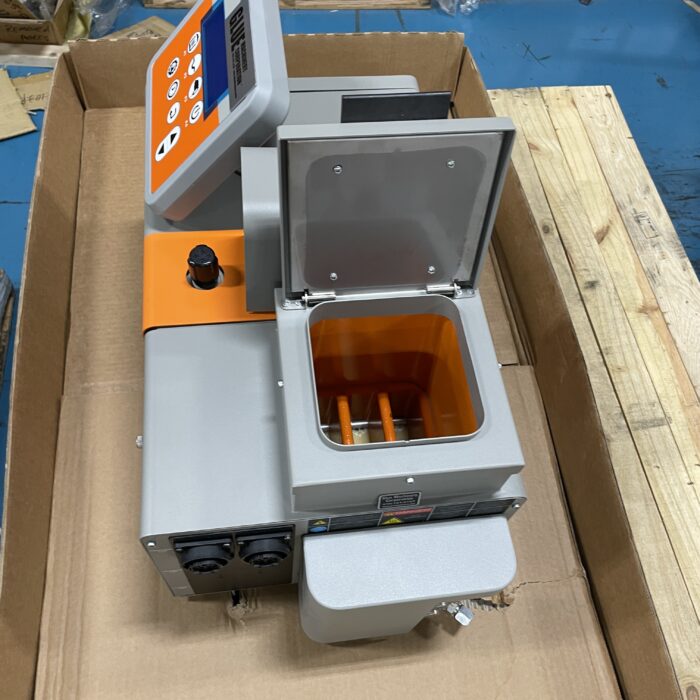

crate photo DS + SR - Glue Machinery Corp — Shipping crate for DS Units

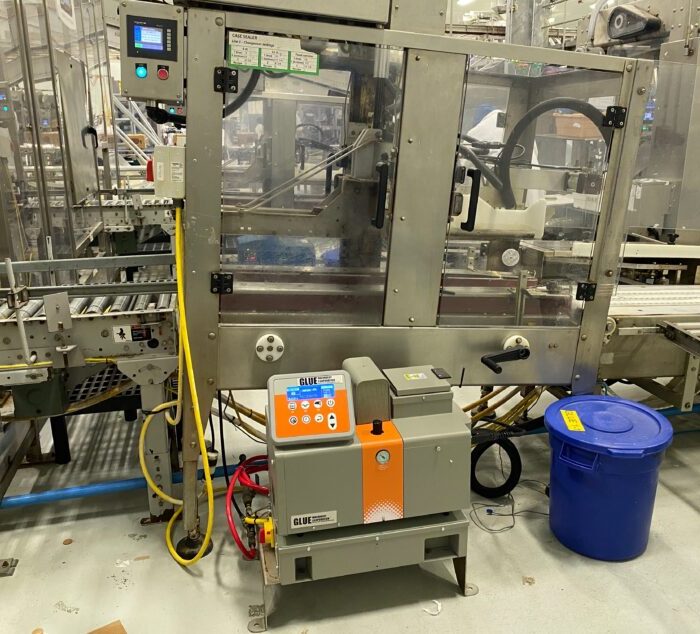

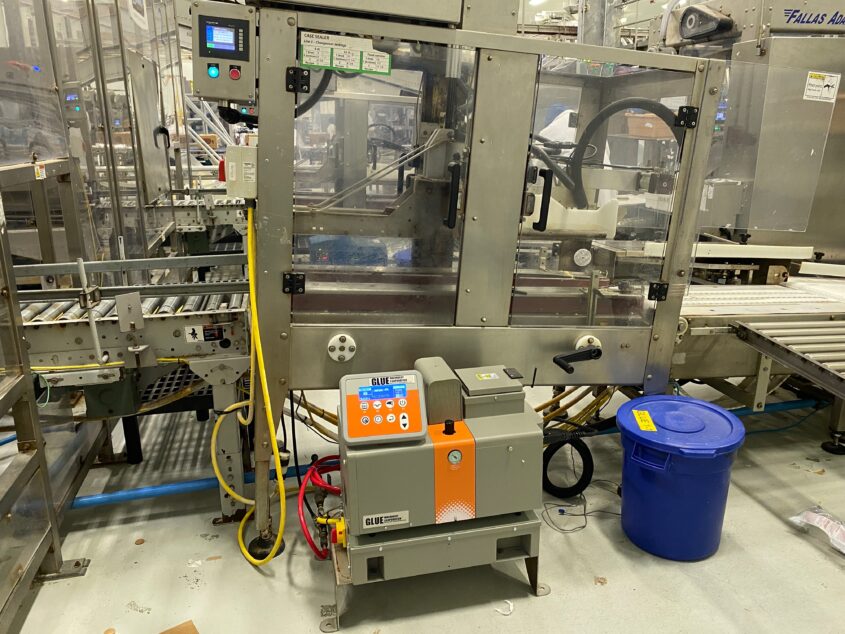

DS Dynachamp3 - Glue Machinery Corp — With DS Simplicity Hot Melt Unit and hose

Photograph of an ITW Dynatec hot melt adhesive machine

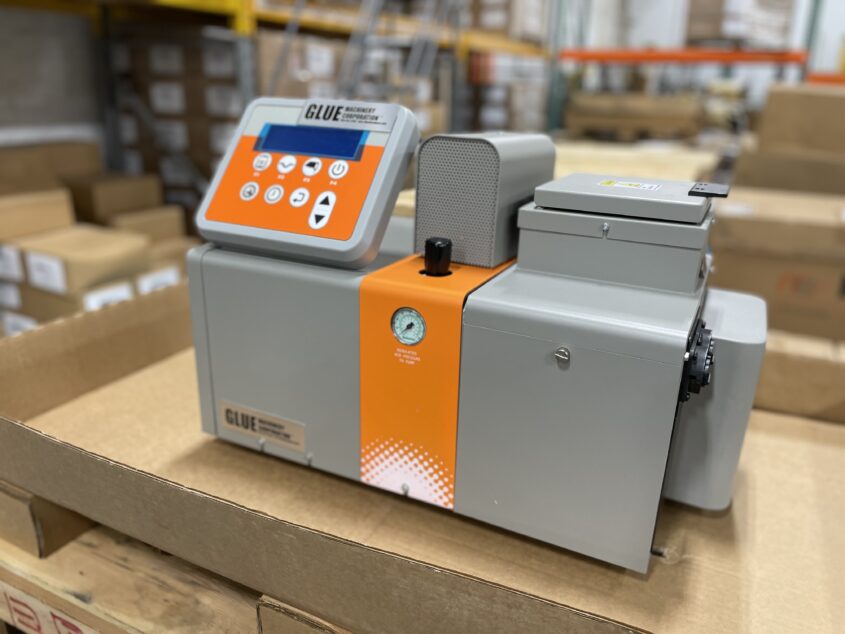

DS Simplicity 4-28-22 - Glue Machinery Corp

Product Videos (Click to View)

Product Details:

Features:

All Metal Construction
Easy-to-operate temperature controls
Machine eliminates charring and reduces maintenance
Available configured to operate with Nordson hoses and guns

Options:

4kg, 8kg, 16kg tank sizes = 9, 18, 35lb capacity
Low-level sensor
Pre-filter gauges cue filter change or clogged nozzles
Auto feed capable
Can accommodate up to 6 hoses and guns

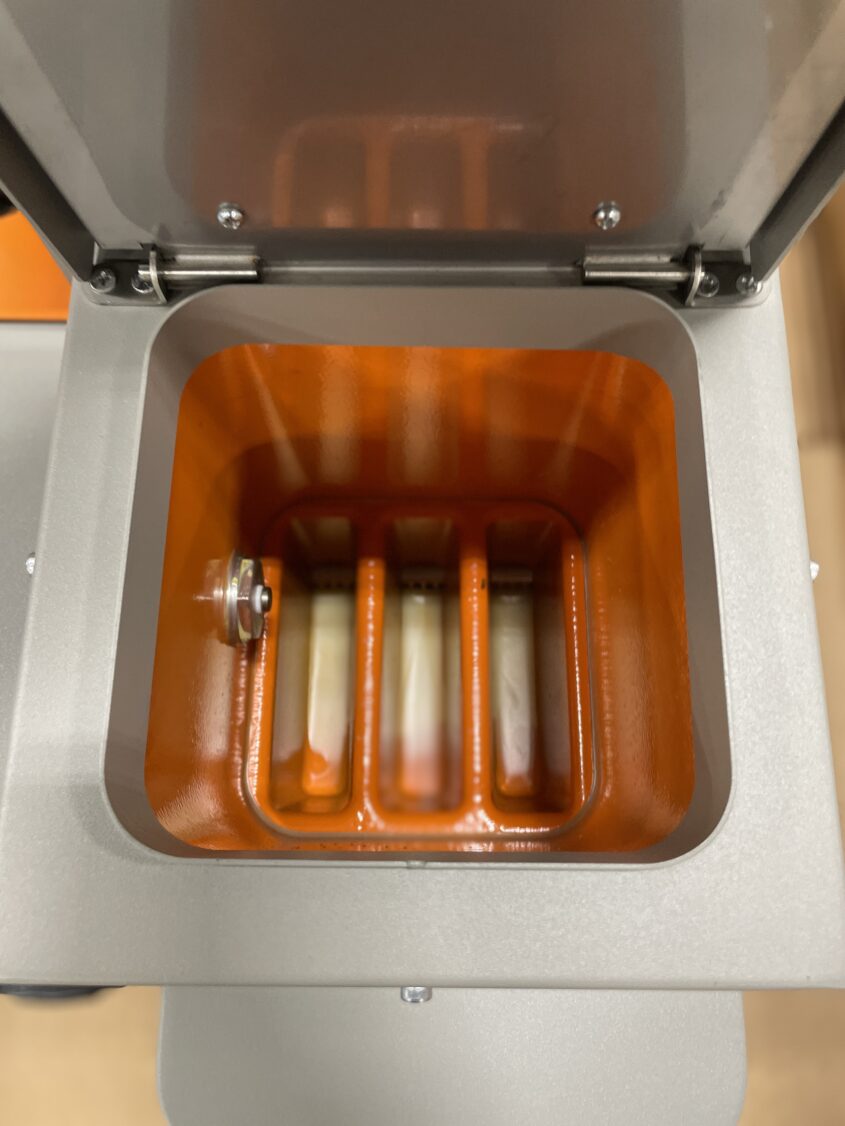

Available pre-melt grid for increased melt rate
400 VAC or 480 VAC w/o neutral transformers

Technical Data:

System	4kg	8kg	16kg/15kg Dual Piston Pump
Hopper Capacity	4kg (9lbs)	8kg (18lbs)	16kg (35lbs)
Operating Temp.	10°C to 232°C (50°F to 450°F)
Melt Rate*	25 lbs/hr	25 lbs/hr	50 lbs/hr
w/ Optional Grid	n/a	n/a	90 lbs/hr
Piston Pump Rate	4/8/16kg = 0.91 kg/min (2 lbs/mins) 16kg DPP = 1.81 kg/min (4lbs/min)
Piston Pump Comp.	12 : 1
Hose/Head Output Zones	2, 4, 6
Max. Working Hydraulic Pressure	68 bar (1000psi)
Temp. Control Stability	+/- 1°C (1°F)
Supply Voltage Setup	230 VAC Single Ph, 240 VAC 3Ph Δ, 230/400 VAC #Ph + N + PE, 400/480 VAC, 3Ph&Delta
Working Viscosity	500 to 50,000 csp
Height	454.5 mm (17.89 in)	541.5 mm (21.32 in)	510.6 mm (20.10 in)
Depth	339 mm (13.34 in)	339 mm (13.34 in)	431.2 mm (16.97 in)
Width	619.5 mm (29.39 in)	619.5 mm (29.39 in)	712.9 mm (28.07 in)
Hopper Opening	5.45in x 5.45in	5.45in x 5.45in	9.46in x 9.46in

*Dependent on adhesive type
