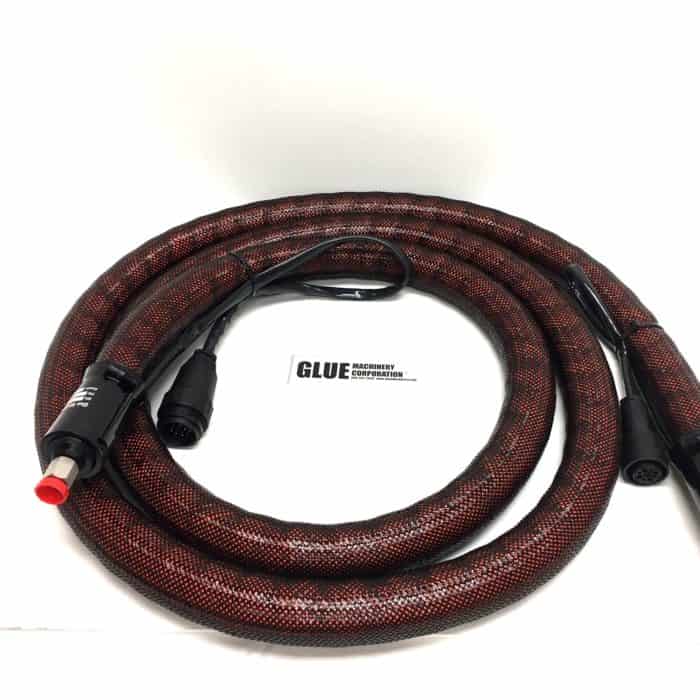

EconoMelt™ 10 Industrial Hot Melt TankHot Melt Hose17
EconoMelt™ 10 Industrial Hot Melt TankHot Melt Hose18
EconoMelt™ 10 Industrial Hot Melt Tank19
EconoMelt™ 10 Industrial Hot Melt Tank20
EconoMelt™ 10 Industrial Hot Melt Tank21

Compatible With:

All standard hot melt adhesives. (Quality Bulk Adhesives available from Glue Machinery Corporation™)

Product Manuals / Related PDFs:

Manual available - Please call

EconoMelt™ 10 Industrial Hot Melt Tank

Simple, low cost industrial hot melt tank with 10 lb capacity tank, high flow piston pump ability to operate one hose and handgun or one hose and automatic gun.

$



Product Videos (Click to View)

Cycling Dots1 Extruding Dots for Conformal Coating2 Case Gluing3 Atomization4 Foam Assembly on Glue Conveyor5 6 High Output Piston Pump7 EconoMelt 20-2 Automatic Hot Melt System in operation8

Product Details:

  • 10 lb tank capacity.
  • 7 to 15 lb / hour melting rate depending on system voltage and adhesive.
  • Air powered piston pump.
  • Max viscosity: 12,000 CPS
  • Max Operation Temp: 220ºC/428ºF
  • Dimensions: 16.93" x 13.39" x 28.74"
  • 10 lbs per hour in 120 VAC and 15 lbs per hour in 240 VAC
  • Operates with one 6 or 8’ hose in 120 “VAC and one 6, 8 or 12’ hose in 240 V
  • Power Requirements: 120VAC= 16.6 amp/1ph/50-60Hz. 240VAC=8.33 amp/1ph/50-60Hz.
  • Also available as a Swirl Spray System
  • Maximum pump air consumption at 60PSI 1.4 SCFM (30 pump cycles per minute).
