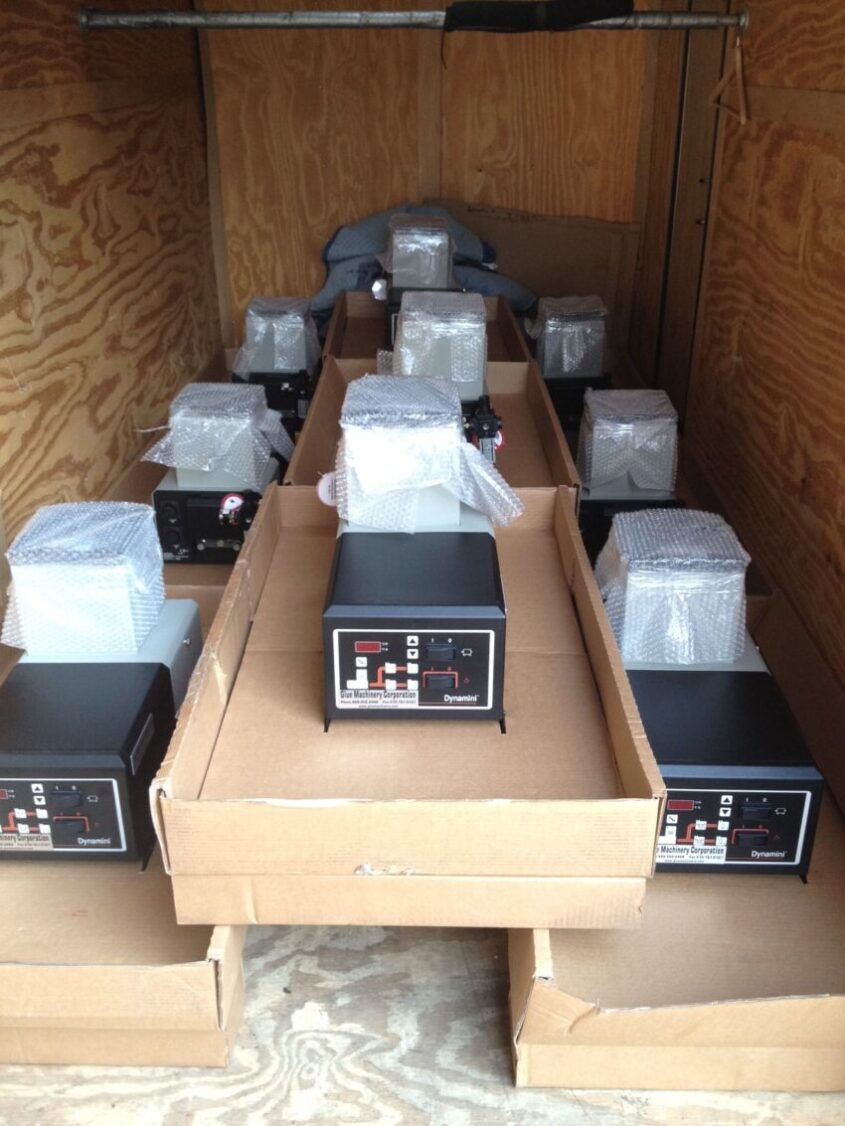

N5 High Performance Hot Melt Tank
High Quality "Melt On Demand" basic hot melt tanks used to melt and pump a range of hot melt adhesives at precise temperatures, flow rates and pressures through flexible hot melt hoses to hot melt handguns or automatic hot melt guns.
$
With N5 Hot Melt Tank and Hose
Hot Melt Hose
Hot Melt Hose
Product Videos (Click to View)
Product Details:
System N05
Hopper Capacity 10lbs( 5kg)
Operating Temperature 100 to 425°F(40 to 218°C)
Melt Rate (per hour)* 17.3lb/hr (8 kg/hr) ** Depends on hot melt
Pump Rate (per hour)* 2lb/min (.91 kg/min)
Gear Pump 1.5, 3.2, 4.5 & 10cc
Hose Output Zones 2
Temperature Control Stability ± 1°F (1°C)
Electrical Service Standard 100 to 120 VAC 1Phase 50/60 Hz or 240 V
Electrical Service Standard -
Working Viscosity 500 - 50,000cps
Dimensions N05
Height (H) 17.75in (45cm)
Depth (D) 21.25 in (54 cm)
Width (W) 11.38 in (29 cm)
Weight (empty) 60lbs (27 kg)
10 lb capacity Melt On Demand tank 10-12 lb per hour melt rate
Operates with up to two hoses and guns
Precision temperature controls with zone readout
Constant speed gear pumps
240 VAC-no compressed air required
Options:
Motor enable switch to turn on pump from DynaChamp handgun
