Shot Pot™ Swirl - Hot Melt System

View Product Videos

Product Info:

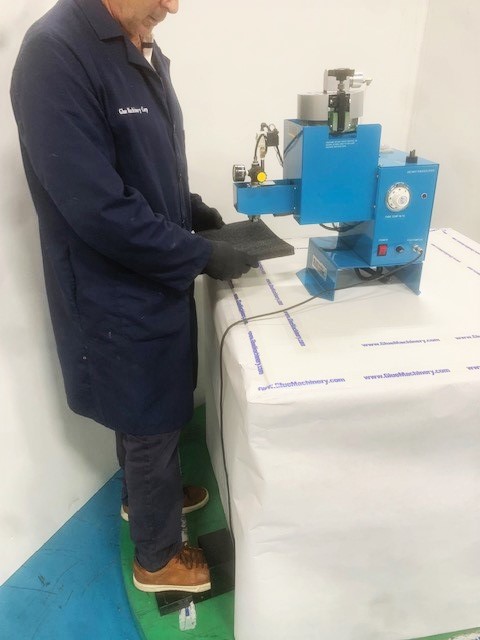

"Hands Free" Hot Melt Swirl/Spray System.
Depress the included foot switch for consistent adhesive patterns.

Product Details:

  • Low Cost Benchtop Hot Melt Swirl System
  • Offers a range of patterns and coat weights.
  • Perfect for R&D and assembly.
  • Adjustable temperature and volume controls.
  • Shot Pot Adapter Threads are 1/4BSPP.
  • 3.5 lb Capacity Melt Reservoir
  • 3.5 to 7 lb per hour melt rate depending on adhesive.
  • 2 to 6 ounce instantaneous adhesive output rate per minute. (1 to 3 grams per second).
  • High-speed pneumatic valve with solenoid.
  • Swirl gun with regulator.
  • Adjustable timer to increase or decrease cycle pattern length.
  • Simple maintenance and operation.
  • Power requirements are 120VAC or 240VAC, 1500 W.
  • Shot Pot Swirl Power Requirements: 120VAC=12.5 amp/1ph/50-60Hz. 240VAC=6.25 amp/1ph/50-60Hz

Compatible With:

Range of low viscosity hot melts.
