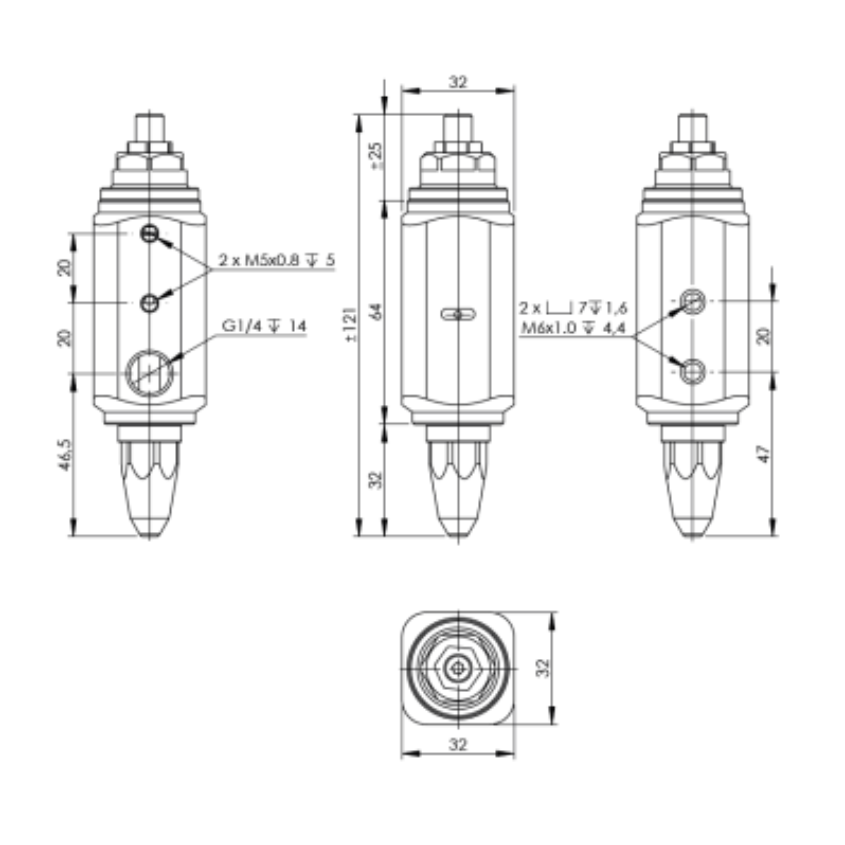

ZB Squirt Gun Diagram with Mounting Holes and Dimensions6
7
8
9
10

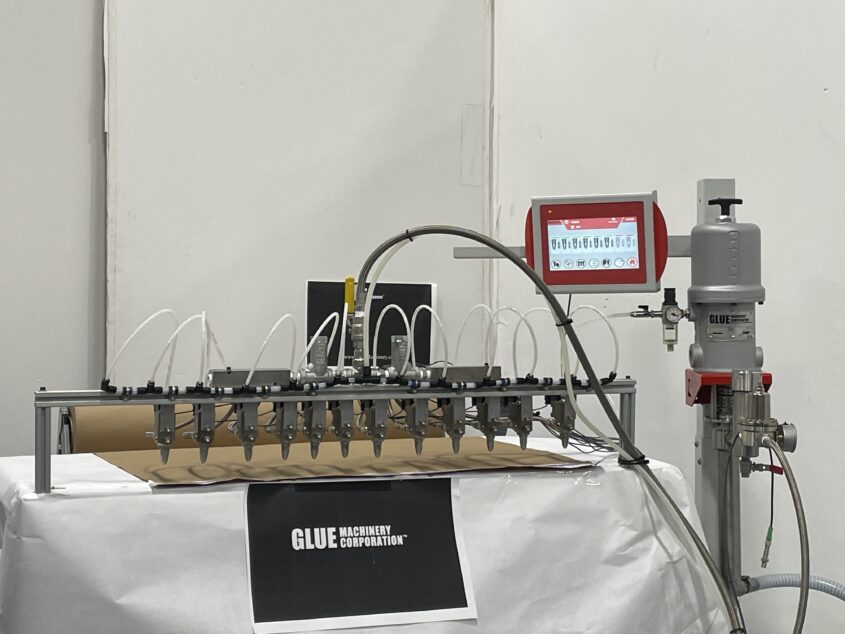

12 ZB Gun Squirt System11
12 ZB Gun Squirt System12
13
14
15
Available in a Multiline16

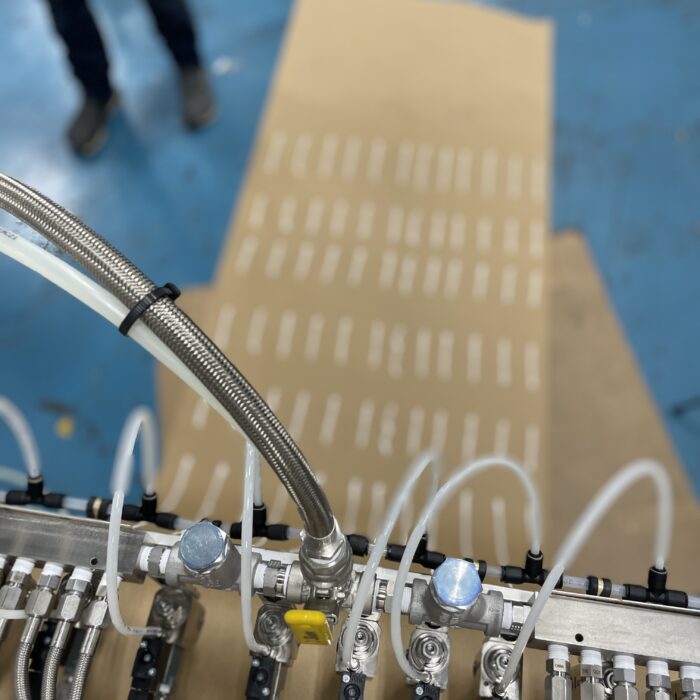

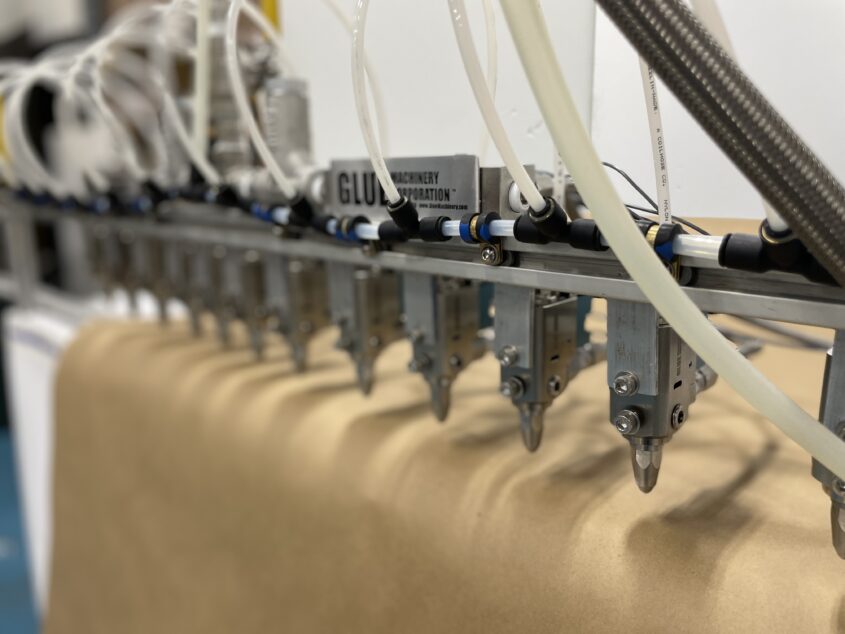

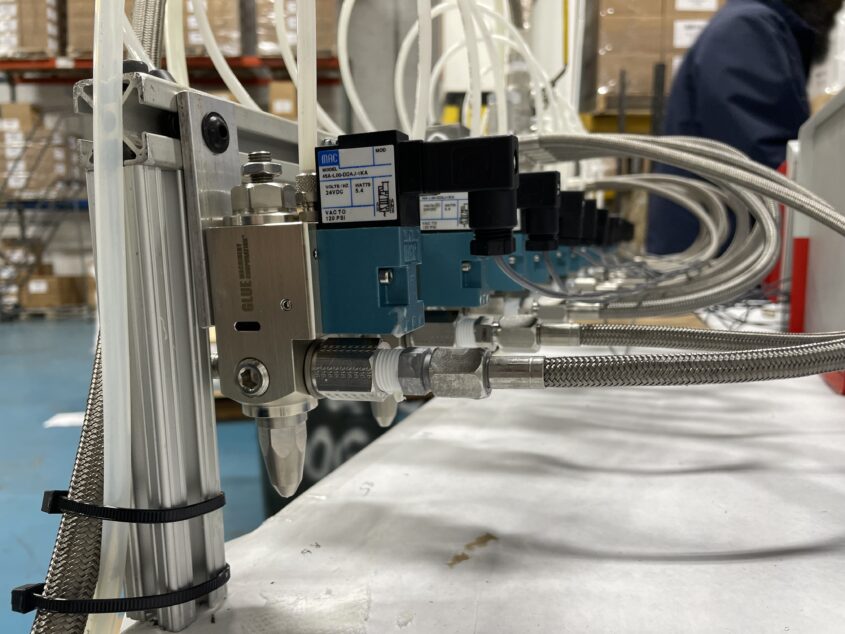

7 ZB Glue Squirt Gun Manifold17
7 ZB Glue Squirt Gun Manifold18
7 ZB Glue Squirt Gun Manifold19
7 ZB Glue Squirt Gun Manifold 20
21

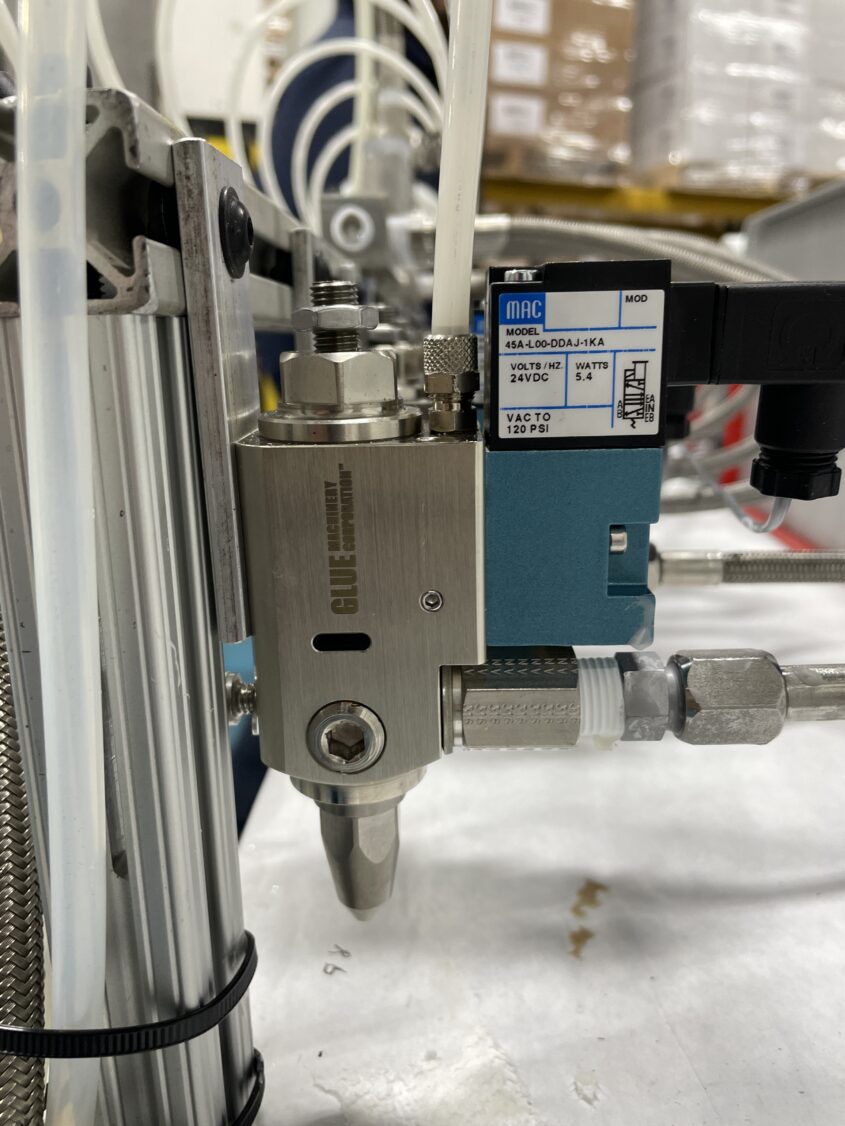

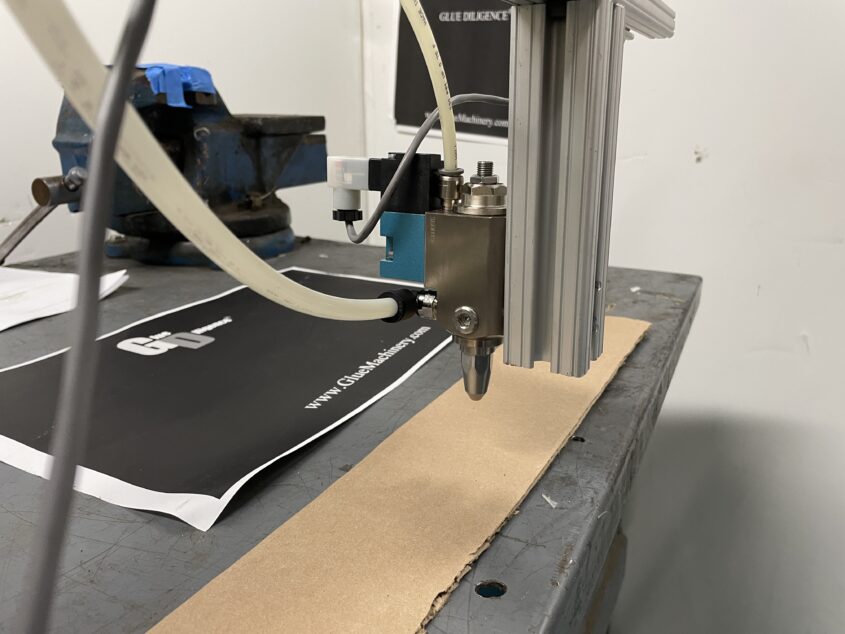

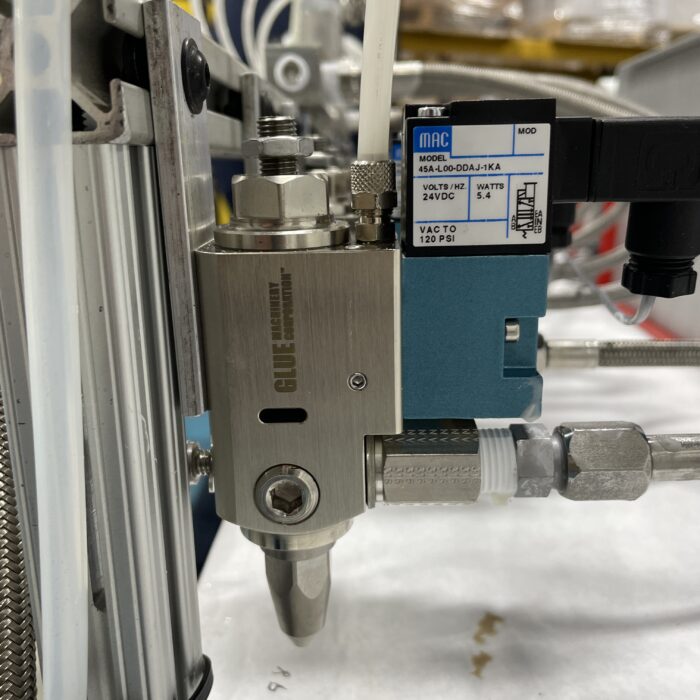

22ZB Glue Squirt Gun
ZB High Flow Glue Valve
$
Product Videos (Click to View)
Bead on Corrugate1 cycling 15K cps craft glue2 3 4 Z2 Pattern Controller on Flexo Folder Gluer5 12 Gun System6 12 Gun System Consistent Shot Size7 7 Glue Gun Conveyor Production line8 ZB Glue Squirt 7 Glue Conveyor Production Line Two Passes9 7 Glue Gun Conveyor Production10 Testing Henkel Aquence PL 1105 Dorus PL 110511Product Details:
ZB Glue Squirt Valve extrudes water based adhesive. Available with range of large orifice nozzles. Easily apply thicker glues at higher pressures exactly where they are needed with one or more guns. System is available with multiple guns, solenoid lines, fluid manifolds and piston pumps.TECHNICAL DATA:
- Available nozzle diameters 2.0MM to 5.0MM
- Air pressure control: Min. 5 bar
- Drive Type: Single or double action
- Max. working pressure: 150 bar
- Weight: 490g
- Available in: 12VDC and 24VDC
QUOTE THIS EQUIPMENT
ZB Cold Glue Squirt Gun (Cold Glue Bead Applicator)
Call 1-410-761-2727Or Fill Out The Form Below
