Champ™ 600 Bulk Hot Melt Handgun1

Magnetic Base included with gun2

Champ™ 600 with wire stand3

Filling Champ™ 6005

Champ 600 cutout6

8oz Melt tank7

Tank Opening 1.8"8

Single Orifice Nozzles9

Multi Orifice Nozzles10

Extended Nozzles11

Custom 3 hole nozzle12

Three Hole Case Sealing Nozzle 13

Filter End Cap Gluing16

120VAC/ 500 Watt/ 50-60 Hz, supplied with NEMA 5-15 Style plug. 17

Champ 600 guns assembled and tested19

G05E01-030 Extended Nozzle Insert + G05E01-029 Basic Nozzle for insert 20

Multi Orifice Nozzles available21

Hosel Nozzle for Golf Bias Weighting23

Coming soon... Champ 600 LCD24

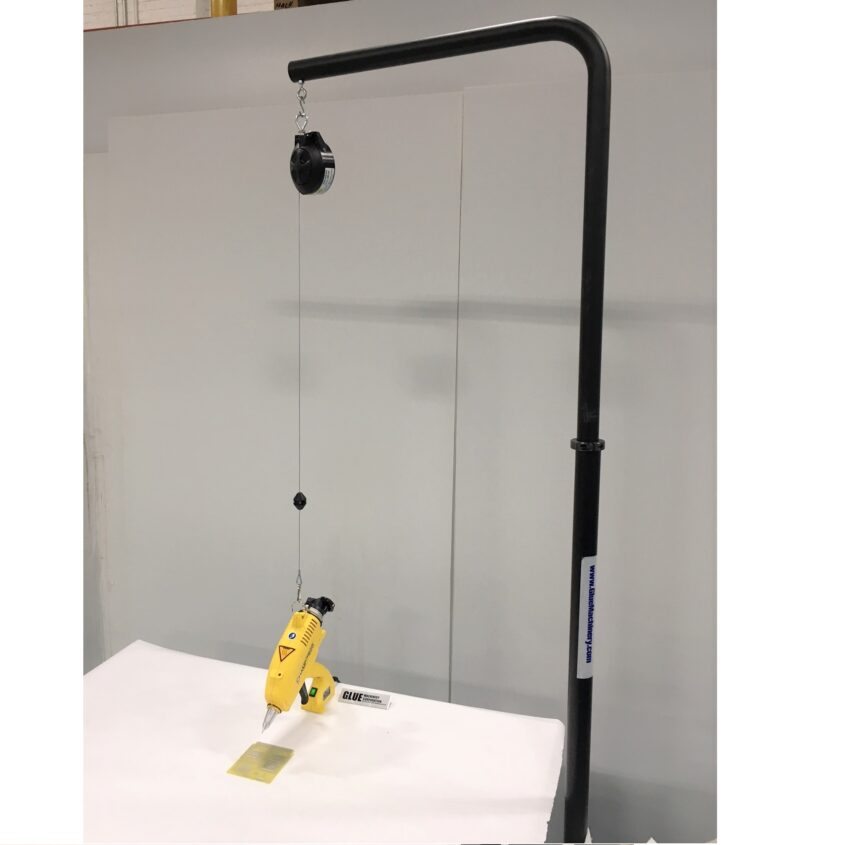

Champ 600 with boom and balancer25

Champ 5 with Tool Balancer and Mandrill26

Compatible With:

Hot Melt Adhesives in Bulk Chip form: Permanent, Removable, Packaging and others. (Quality Bulk Adhesives available for use with Champ™ 600 from Glue Machinery Corporation)

Product Manuals / Related PDFs:

Champ™ 600 Nozzle List Manual Available - Please call

Warning:

Melt-Fill Tank

Supplemental Melter for Hot Melt Handguns with Reservoirs.

Champ™ Sump

Melter with pump for fast hot melt filling of the Champ™ 3, 5, and 10.

Read and understand Champ 600 manual before operating
Only apply hot melt down to substrate
Operate when adhesive is molten in chamber only
Never tilt the gun back or lay down
Always insure back lid is closed before using
Do not overfill reservoir
Add small quantities of hot melt to the reservoir regularly

** Read Manual Before Operating Any Champ Adhesive Applicator**
Always Wear Protective Gloves, Sleeves and Safety Glasses When Operating Champ Adhesive Applicators
** Champ Adhesive Applicators And Adhesives Are Very Hot; Injury Could Result From Improper Use**

Champ™ 600 Bulk Hot Melt Glue Gun

$795.00+shipping

Industrial Hot Melt Handgun with 8 ounce melt tank in the gun, high output piston pump, "No Drip" check valve nozzle tip, and adjustable temperature control, locking tank lid, for use with low cost bulk hot melt adhesives.

$795.00

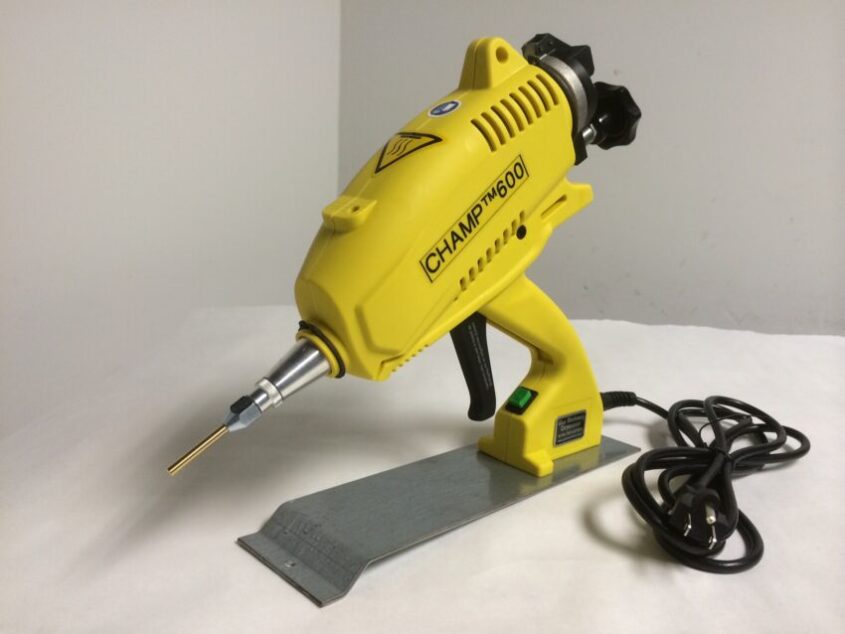

Photograph of an industrial hot glue gun — Champ™ 600 Bulk Hot Melt Handgun

Champ™ 600 — Magnetic Base included with gun

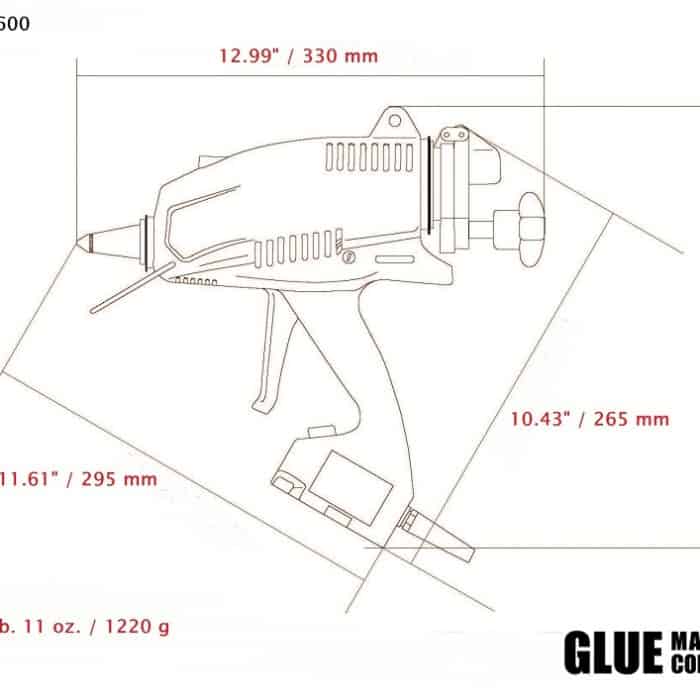

Champ 600 Dimensions 2012 - Glue Machinery Corp

CHamp 600 3 hole nozzle - Glue Machinery Corp — Custom 3 hole nozzle

Champ 600 with three hole case sealing nozzle - Glue Machinery Corp — Three Hole Case Sealing Nozzle

IMG_2852 - Glue Machinery Corp — 120VAC/ 500 Watt/ 50-60 Hz, supplied with NEMA 5-15 Style plug.

IMG_1935 - Glue Machinery Corp — Champ 600 guns assembled and tested

Multi orifice nozzles - Glue Machinery Corp — Multi Orifice Nozzles available

Champ 3 hosel - Glue Machinery Corp — Hosel Nozzle for Golf Bias Weighting

Champ boom balancer - Glue Machinery Corp — Champ 600 with boom and balancer

Product Videos (Click to View)

Product Details:

Offers precise dots or beads
High flow piston pump trigger mechanism
Check Valve nozzle tip to minimize "stringing" and dripping
Processes bulk hot melt adhesive in chip or pillow form
"All Electric", no air required
8 oz. adhesive melt reservoir in gun
2 lb. per hour melt rate depending upon adhesive
Adjustable thermostatic temperature control: 68°F to 392°F (20°C to 200°C)
Multiple nozzle configurations available
Gun Weight: 3.25 pounds (without adhesive)
Power Requirements:
- 120VAC=4.16 amp/1ph/50-60Hz/500 Watt-supplied with NEMA 5-15 Style Plug
- 240VAC=2.08 amp/1ph/50-60Hz
Wire stand and magnetic stand gun base to bond to metal table
Cord Length : 7'9"
120 or 240 VAC
One nozzle included with each gun purchase

** All Champ Nozzles are replacement items and should be stocked
