EconoMelt™ 10 Industrial Hot Melt Handgun SystemEconoMelt™ 10 Hot Melt System1
EconoMelt™ 10 Industrial Hot Melt Handgun System2
EconoMelt™ 10 Industrial Hot Melt Handgun SystemSide view of EconoMelt™ 10 – Showing single hose connection panel.3

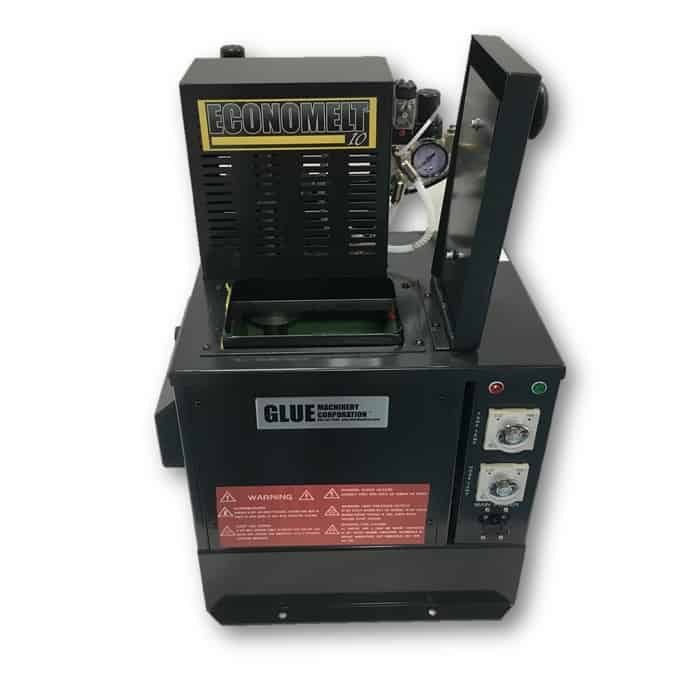

EconoMelt™ 10 Industrial Hot Melt Handgun SystemEconoMelt™ 10 with Lid open4
EconoMelt™ 10 Industrial Hot Melt Handgun System5
EconoMelt™ 10 Industrial Hot Melt Handgun SystemIndustrial Strength Quality and Materials6
EconoMelt™ 10 Industrial Hot Melt Handgun SystemEconoHose7
EconoMelt™ 10 Industrial Hot Melt Handgun SystemEconoMelt™ 10 has a 10 lb. capacity Teflon lined tank.8
EconoMelt™ 10 Industrial Hot Melt Handgun System9
EconoMelt™ 10 Industrial Hot Melt Handgun System10
EconoMelt™ 10 Industrial Hot Melt Handgun System11

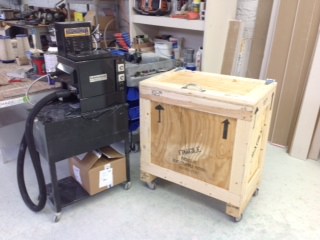

EconoMelt™ 10 Industrial Hot Melt Handgun SystemEconoMelt™ Shipping Crate (Stand not included)12
EconoMelt™ 10 Industrial Hot Melt Handgun SystemEconoChamp Handguns in Stock13

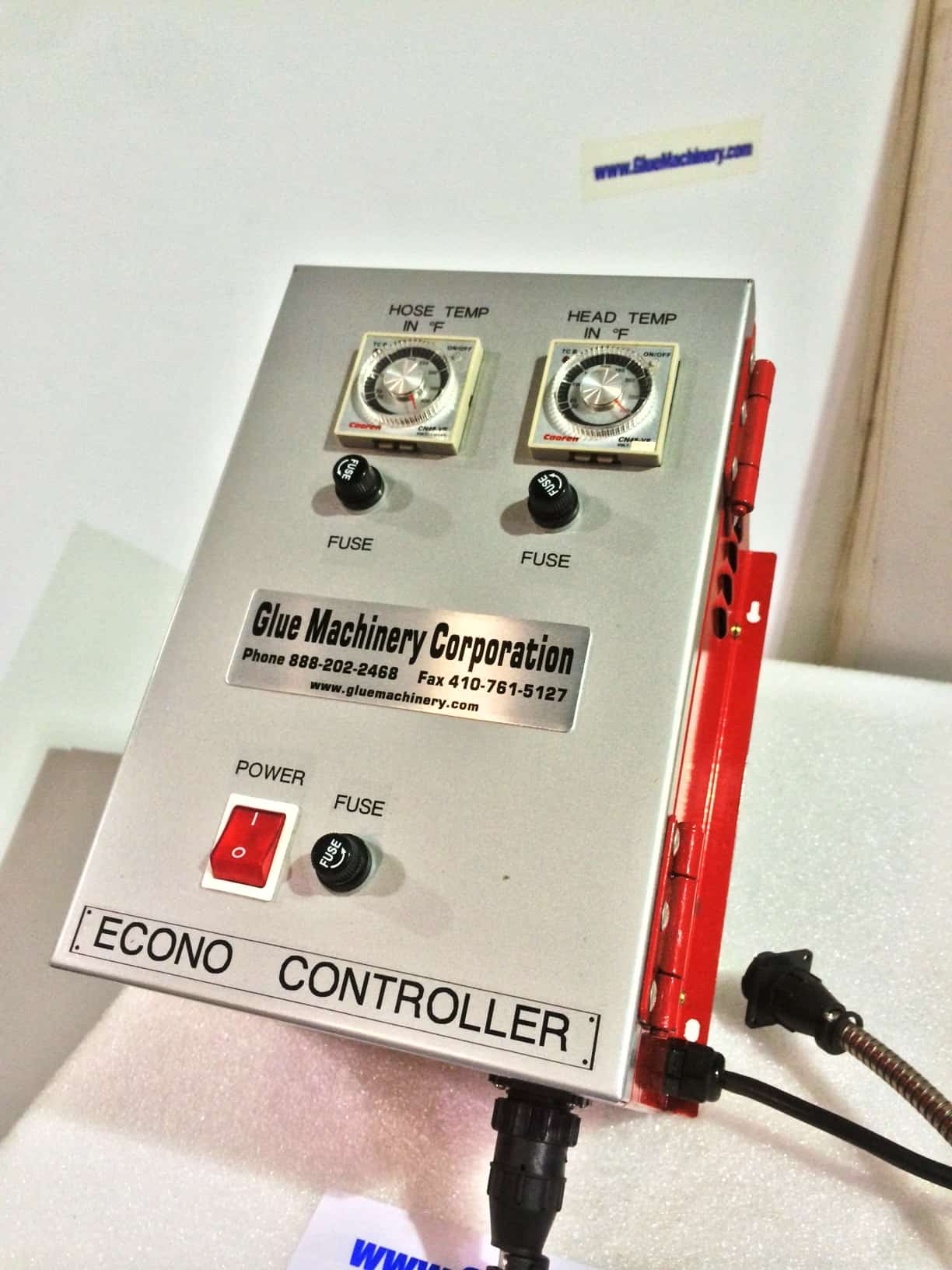

EconoMelt™ 10 Industrial Hot Melt Handgun SystemEcono Controller14
EconoMelt™ 10 Industrial Hot Melt Handgun SystemEconoChamp Handgun with Champ Boom and Tool Balancer15

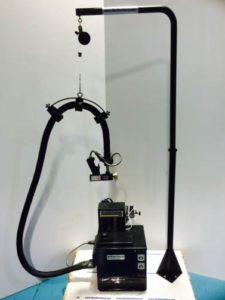

EconoMelt™ 10 Industrial Hot Melt Handgun SystemEconoMelt™ with Econochamp Boom, Balancer and Hammock16
EconoMelt™ 10 Industrial Hot Melt Handgun SystemEconoGun™ Hot Melt Bead Gun17
EconoMelt™ 10 Industrial Hot Melt Handgun SystemEconoGun™ Mini Hot Melt Gun18
EconoMelt™ 10 Industrial Hot Melt Handgun SystemEconoMelt Handgun System with Boom and Balancer19
EconoMelt™ 10 Industrial Hot Melt Handgun SystemChamp 600 with boom and balancer20

Compatible With:

All standard hot melt adhesives. (Quality Bulk Adhesives available from Glue Machinery Corporation™)

Product Manuals / Related PDFs:

Manual available - Please call

EconoMelt™ 10 Industrial Hot Melt Handgun System

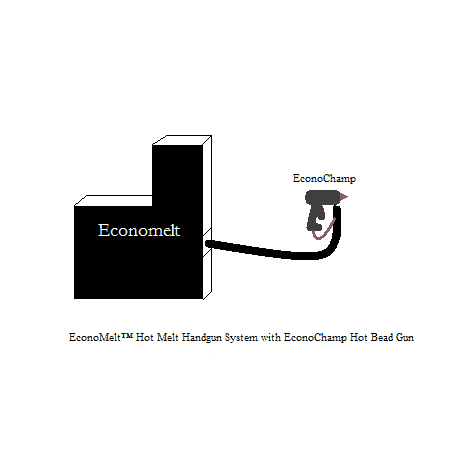

Simple, low cost industrial hot melt tank with 10 lb capacity tank, high flow piston pump ability to operate one hose and handgun or one hose and automatic gun.

$

Product Videos (Click to View)

Bag-In-A Box Gluing1 Extruding Dots for Conformal Coating2 EconoChamp Dual Orifice Nozzle3 Applying PUR for Cabinet Building4 Gluing Wallboard5 EconoChamp Dots and Lines6 EconoChamp Lines7 With Boom and Balancer8 Sealing Drums9 High Output Piston Pump10 Inverted Nozzle dispencing wax11 Erect and Seal Large Box using hot melt adhesive12

Product Details:

  • 10 lb tank capacity.
  • 7 to 15 lb / hour melting rate depending on system voltage and adhesive.
  • Air powered piston pump.
  • Max viscosity: 12,000 CPS
  • Max Operation Temp: 220ºC/428ºF
  • Dimensions: 16.93" x 13.39" x 28.74"
  • 10 lbs per hour in 120 VAC and 15 lbs per hour in 240 VAC
  • Operates with one 6 or 8’ hose in 120 “VAC and one 6, 8 or 12’ hose in 240 V
  • Power Requirements: 120VAC= 16.6 amp/1ph/50-60Hz. 240VAC=8.33 amp/1ph/50-60Hz.
  • Also available as a Swirl Spray System
  • Maximum pump air consumption at 60PSI 1.4 SCFM (30 pump cycles per minute).
  • The EconoMelt™ 10 utilizes analog temperature controllers and type k thermocouples. These analog temperature controllers are factory preset and calibrated to the thermocouple. These do not require re-calibration.
