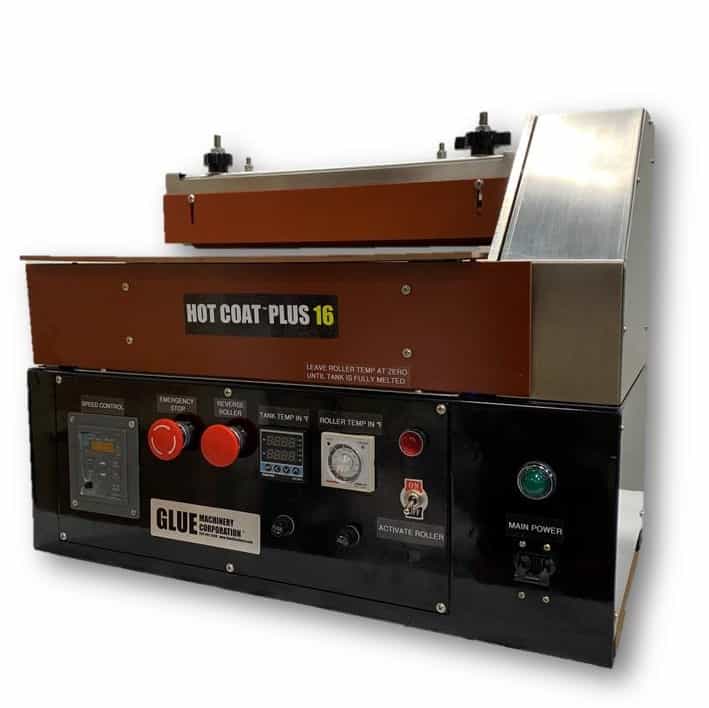

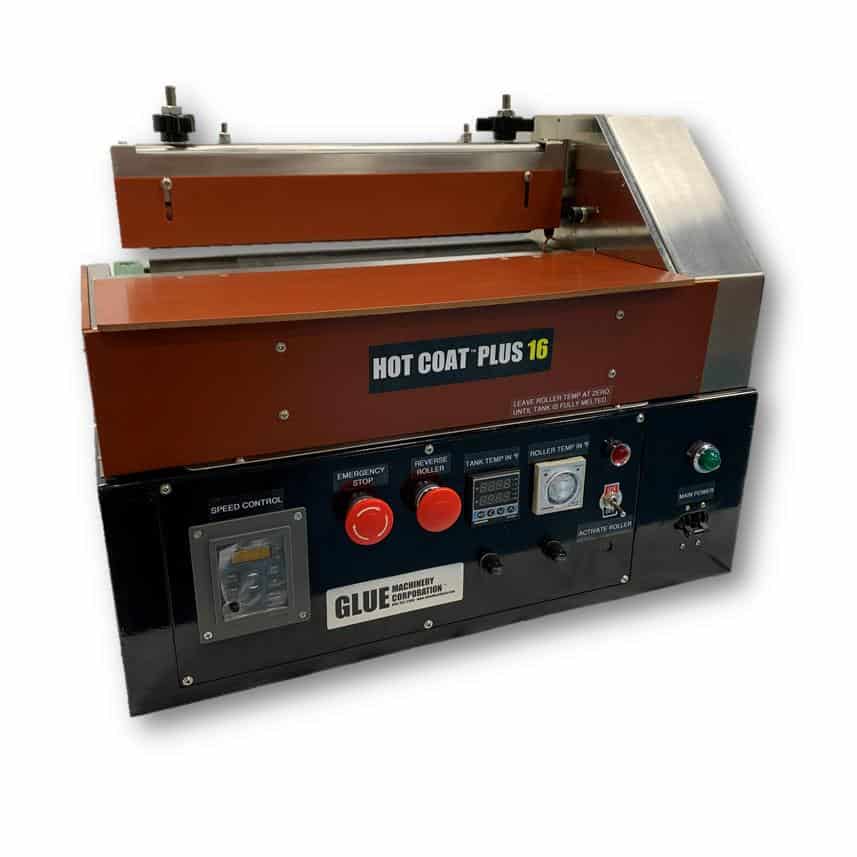

Hot Coat™ Plus 16 Industrial Hot Melt Roll Coater

View Product Videos

Product Info:

Economical 16" Hot Melt Roll Coater with urethane covered adjustable drive roller for the precise hot melt coating of thin, rigid substrates from .050" to .40" thick. The Hot Coat™ Hot Melt Coaters insure product quality, accelerated production speeds, long term operation with minimal maintenance and operator friendly ergonomics.

Two zone temperature controls offer exact adhesive temperature and viscosity and no "adhesive stringing". Maximum melt rate and high speed wheel maximize production speeds. Oversized drive motor and quality components minimize maintenance. Compact machine design allows for easy operator access from all sides.

Product Details:

Item Machine Specifications
Power Supply Demand 220 VAC / 50-60 Hz
Power 3 KW
Size (L x W x H: inches) 25.2" x 13" x 17.5"
Roller Width 16.125"
Tank Capacity (lbs) 6.5 lbs
Max Viscosity 20,000 CPS
Max Melt Rate 8.5 lbs/hr
Max Working Temp. 428ºF (220ºC)



  •  Variable speed motor drive.
  • Adjustable temperature controls for melter.
  • Melter is manually cycled to fill wheel.

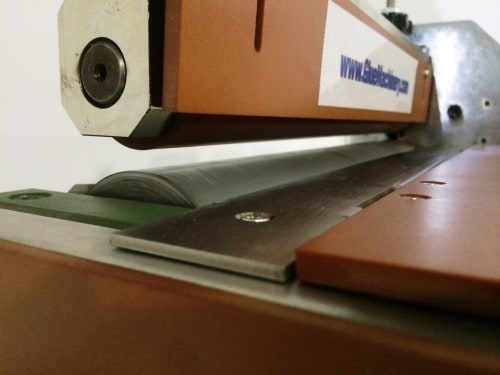

  • Adjustable doctor blade.
  • Variable width product.
  • Driven nip roll.
  • Easy access to tank for removal of debris from substrates.
  • Bulk Filling Systems with automatic level control available.
  • Parts and service available with one call.
  • Hot Coat 16/Plus Power Requirements: 240VAC= 12.5 amp/1ph/50-60Hz.
  • 7'8", 12 Gauge Power Cable Included to L620P Plug

Product Manuals / Related PDFs:

Hot Coat™ Plus 16 Product Manual is available from Glue Machinery Corporation - 1-888-202-2468

Compatible With:

Wide range of hot melt adhesives
