Champ™ PUR Cartridge Bead Gun Product Manual is available from
Glue Machinery Corporation - 1-888-202-2468
Warning:
** Read Manual Before Operating Any Champ Adhesive Applicator**
Always Wear Protective Gloves, Sleeves and Safety Glasses When Operating Champ Adhesive Applicators
** Champ Adhesive Applicators And Adhesives Are Very Hot; Injury Could Result From Improper Use**
Champ™ PUR Cartridge Bead Gun
Industrial grade polyurethane extrusion gun with preset temperature controller.
$
Champ™ PUR Cartridge Bead Gun
Champ™ PUR Cartridge Bead Gun
Champ™ PUR Cartridge Bead Gun
Champ™ PUR Cartridge Bead Gun
310 ml Cartridge: 9″ Long, 1.845 Diameter, Thread M15x1.5
Adapter, nozzle, and cap

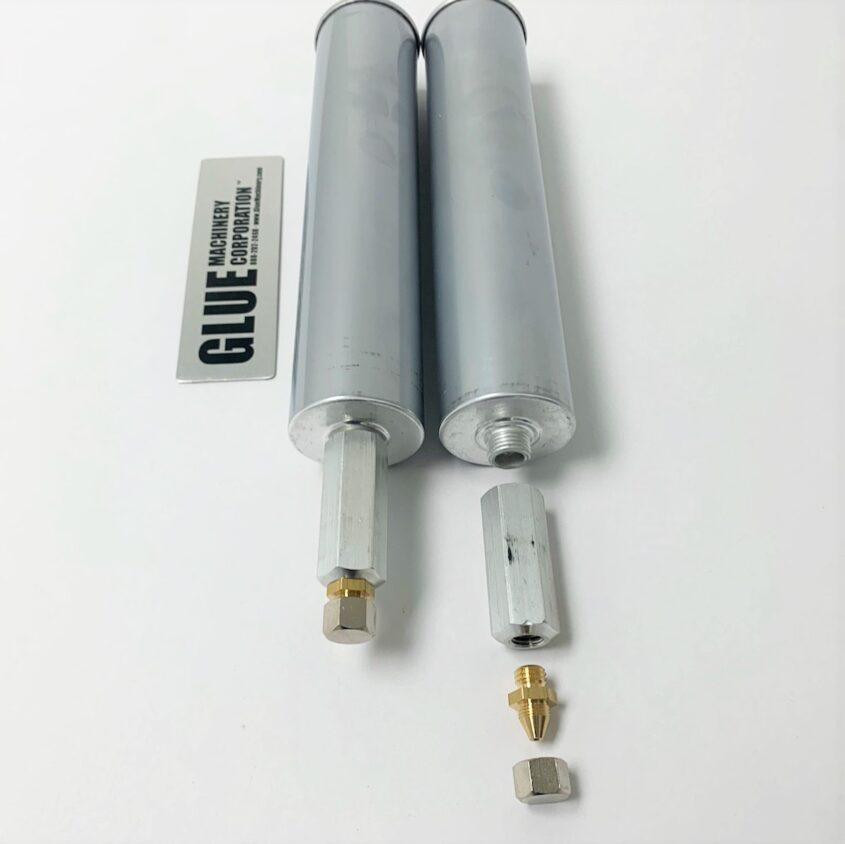

Adapter, nozzle and cap on PUR Cartridge
Adapter, nozzle and cap on PUR Cartridge
Half Model Anatomy of 310mL PUR Cartridge
Half Model Anatomy of 310mL PUR Cartridge
Optional Tool Balancer
Cartridge Preheater
Champ Pneumatic Hot Melt Gun on Custom Stand with footswitch
Excellent low cost PUR guns for extruding moisture curing reactive hot melts.
The PUR Moisture Cure Cartridge Hot Melt Bead Gun melts polyurethane reactive hot melt in 310 ml cartridge form and applies the glue in bead form.
The PUR processing temperature is set at our factory. Typical range for PUR is 250ºF to 325ºF.
Lightweight impact resistant gun shell.
Processes PUR in 310 ml cartridges.
Adjustable glue volume controls air controls.
Variety of nozzles available for variable patterns.
M10 x 1 Nozzle Threads
Heats adhesive to application temperature in 10 to 20 minutes depending upon adhesive.
120VAC 400W, supplied with NEMA 5-15 Style plug, maximum of 3.5 SCFM at 80PSI, supplied with a ¼ industrial coupling.(Customer to contact industrial supplier of compressors for correct air compressor size recommendation)
The umbilical cable back to the included air regulator that houses the air line and power cord is 15’. The power cords from the end of the umbilical cord is 12’.
