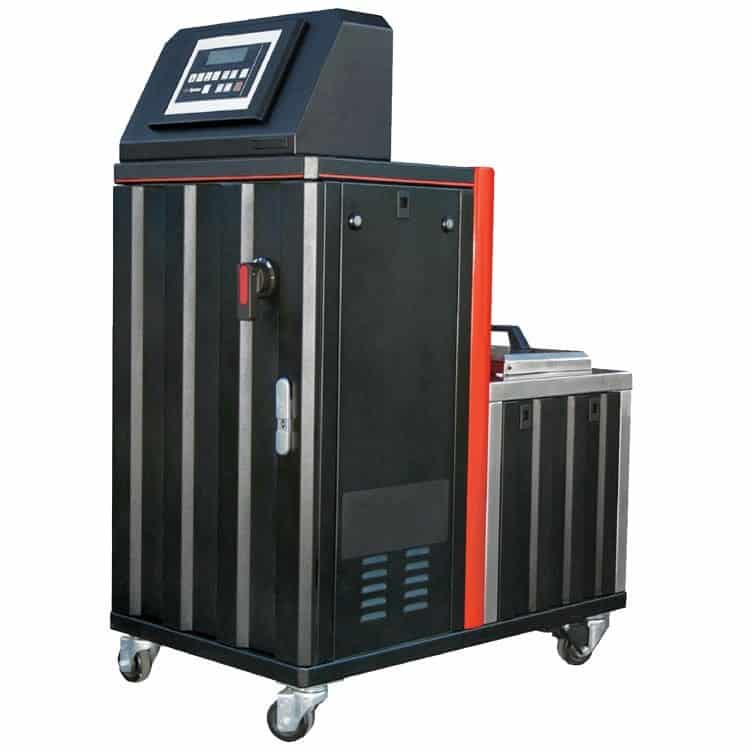

D Series - High Performance Hot Melt Tanks

The D Series Hot Melt Tanks are serious mid size bulk industrial hot melt machines. They are available with range of tanks sizes, melt rates, pump sizes and will operate with up to 8 hoses and guns.

$

Product Videos (Click to View)

1 2 3

Product Details:

 System D25 D45 D50 D90
 Hopper Capacity 55 lbs (25kg) 100 lbs (45kg) 110 lbs (50kg) 200 lbs (90kg)
 Operating Temperature 100 to 425° F(38 to 218° C) 100 to 425° F(38 to 218° C) 100 to 425° F(38 to 218° C) 100 to 425° F(38 to 218° C)
 Melt Rate/Hour* 50 lb/hr 23 kg/hr 50 lb/hr 23 kg/hr 100 lb/hr 46 kg/hr 100 lb/hr 46 kg/hr
 Melt Rate/Hour* -w/ optional grid 90 lb/hr 41 kg/hr  90 lb/hr 41 kg/hr 180 lbs/hr 82 kg/hr 180 lbs/hr 82 kg/hr
 Melt Rate/Hour* -2 optional grids 130 lb /hr 59 kg/hr 260 lb/hr 118 kg/hr
 Gear Pumps Standard 1.5, 3.2, or 4.5cc/rev 1.5, 3.2, or 4.5cc/rev 1.5, 3.2, or 4.5cc/rev 1.5, 3.2, or 4.5cc/rev
Gear Pumps / Drives 1-2 1-2 1-4 1-4
 Hose Output Zones** 2-6 2-6 2-8 2-8
 Max Working Hydraulic Pressure 1,000 psi (68 bar) Piston Pump 1,000 psi (68 bar) Piston Pump 1,000 psi (68 bar) Piston Pump 1,000 psi (68 bar) Piston Pump
 Temperature Control Stability ± 1°F (1°C) ± 1°F (1°C) ± 1°F (1°C) ± 1°F (1°C)
 Supply Voltage Setup 1  200 to 240 VAC 3Ph Δ 50/60Hz 200 to 240 VAC 3Ph Δ 50/60Hz 200 to 240 VAC 3Ph Δ 50/60Hz 200 to 240 VAC 3Ph Δ 50/60Hz
 Supply voltage Setup 2  380 to 400 VAC 3Ph Y 50/60Hz  380 to 400 VAC 3Ph Y 50/60Hz  380 to 400 VAC 3Ph Y 50/60Hz  380 to 400 VAC 3Ph Y 50/60Hz
Operator Interface/strong> Icon-based keypad Icon-based keypad Keypad w/ LCD Keypad w/ LCD
 Maximum Wattage 24,200 W 26,700 W 48,400 W 53,400 W
 Working Viscosity (reduced melt-rate) 50,000 – 100,000 cps 50,000 – 100,000 cps 50,000 – 100,000 cps 50,000 – 100,000 cps
 Working Viscosity 500 – 50,000 cps 500 – 50,000 cps 500 – 50,000 cps 500 – 50,000 cps

 Dimensions D25 D45 D50 D90
 Height (H) 52.4 in (133 cm) 52.4 in (133 cm) 52.4 in (133 cm) 52.4 in (133 cm)
 Depth (D) 38 in (97.5 cm)  38 in (97.5 cm)  38 in (97.5 cm)  38 in (97.5cm)
 Width (W) 20.5 in (52 cm)  20.5 in (52 cm) 40.9 in (104 cm) 40.9 in (104 cm)
*Melt rates vary with adhesive type. 200/240 VAC, 50-60 Hz, 3-phase delta nominal or 400 VAC, 50-60 Hz, 3 phase wye nominal. **Four hose/head zones with four auxiliary zones, or six hose/head zones wihtout auxiliary zones. D50/90 units have eight hose/head zones with eight auxiliary zones.
