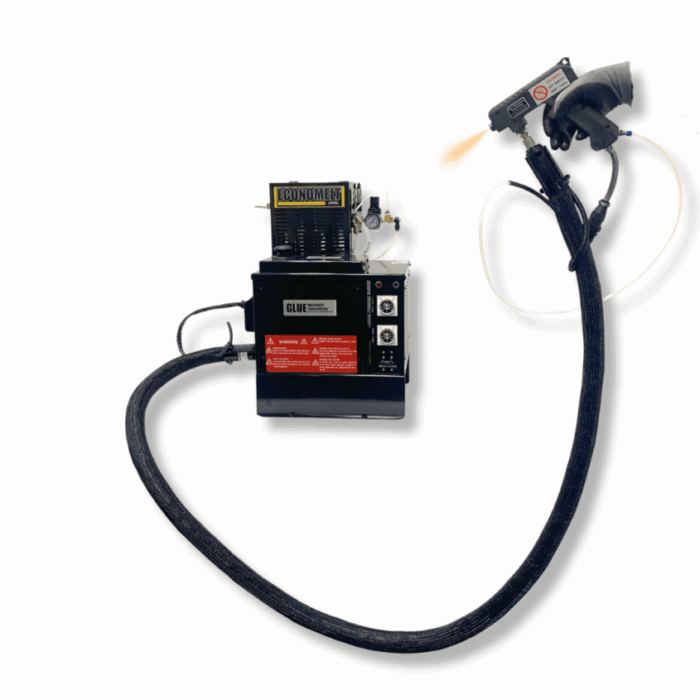

EconoMelt™ 10 Hot Melt Handgun Swirl Distillate SystemEconomelt 10 Swirl System1
EconoMelt™ 10 Hot Melt Handgun Swirl Distillate SystemEconoChamp™ Swirl Handgun2
EconoMelt™ 10 Hot Melt Handgun Swirl Distillate SystemEconoMelt™ 10 Hot Melt Tank3
EconoMelt™ 10 Hot Melt Handgun Swirl Distillate SystemSide view of EconoMelt™ 10 – Showing single hose connection panel.4
EconoMelt™ 10 Hot Melt Handgun Swirl Distillate System5
EconoMelt™ 10 Hot Melt Handgun Swirl Distillate SystemEconoMelt™ 10 has a 10 lb. capacity Teflon lined tank.6
EconoMelt™ 10 Hot Melt Handgun Swirl Distillate SystemIndustrial Strength Quality and Materials7
EconoMelt™ 10 Hot Melt Handgun Swirl Distillate SystemOptional Hose Boom package available - Inquire for details.8
EconoMelt™ 10 Hot Melt Handgun Swirl Distillate System9
EconoMelt™ 10 Hot Melt Handgun Swirl Distillate System10
EconoMelt™ 10 Hot Melt Handgun Swirl Distillate System11
EconoMelt™ 10 Hot Melt Handgun Swirl Distillate SystemEconoMelt Handgun System with Boom and Balancer12
EconoMelt™ 10 Hot Melt Handgun Swirl Distillate System13
EconoMelt™ 10 Hot Melt Handgun Swirl Distillate System14
EconoMelt™ 10 Hot Melt Handgun Swirl Distillate System15

Compatible With:

Economelt Parts and technical service available with one call 1-800-202-2468 or 1-410-761-2727

EconoMelt™ 10 Hot Melt Handgun Swirl Distillate System

The Economelt 10 Hot Spray Distillate System will improve the speed and ease with which you apply distillate to your products, and this equipment will last many years with proper care and minimal maintenance. Users may add a Boom/Balancer package to enhance the ergonomics of the application.

$

Product Videos (Click to View)

1 2

QUOTE THIS MACHINERY

EconoMelt™ 10 Hot Spray Distillate Application System

Call 1-410-761-2727Or Fill Out The Form Below
  • This field is for validation purposes and should be left unchanged.

Product Details:

The Economelt 10 Hot Spray Distillate System
  • 120 V OR 240 V ( Must be specified by customer)
  • 10 lb tank capacity
  • 7 to 15 lb / hour melting rate depending on system voltage and adhesive
  • Air powered piston pump
  • Max viscosity: 12,000 CPS
  • Max Operation Temp: 220ºC/428ºF
  • Dimensions: 16.93" x 13.39" x 28.74"
  • 10 lbs per hour in 120 VAC and 15 lbs per hour in 240 VAC
  • Operates with one 6, 8 or 12’ hose 120 or  240 V
  • Power Requirements: 120VAC= 16.6 amp/1ph/50-60Hz. 240VAC=8.33 amp/1ph/50-60Hz
  • Also available as a Extrusion  System only to apply beads of hot melt
  • Maximum pump air consumption at 60PSI 1.4 SCFM (30 pump cycles per minute)
  • The EconoMelt™ 10 utilizes analog temperature controllers and type k thermocouples. These analog temperature controllers are factory preset and calibrated to the thermocouple. These do not require re-calibration.
