Hot Melt Hose14Compatible With:

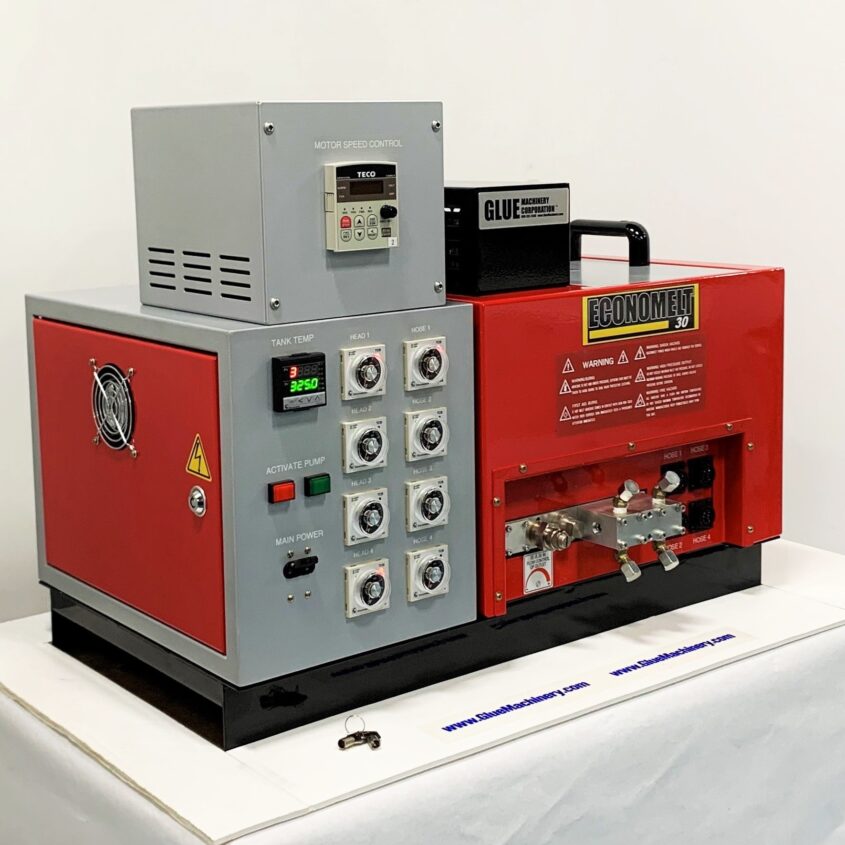

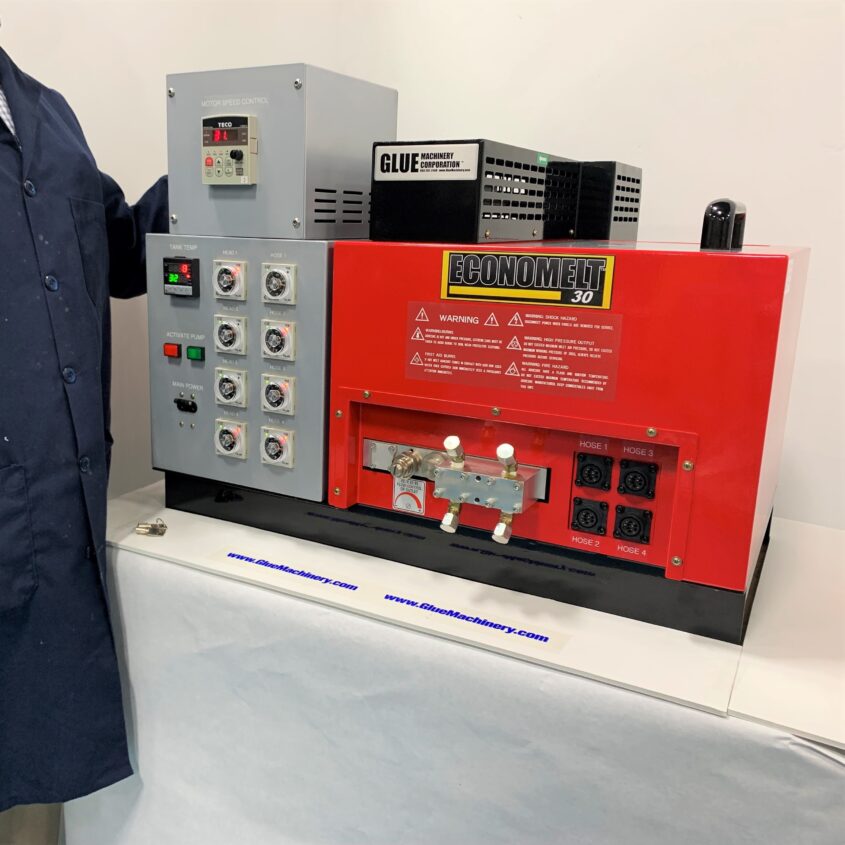

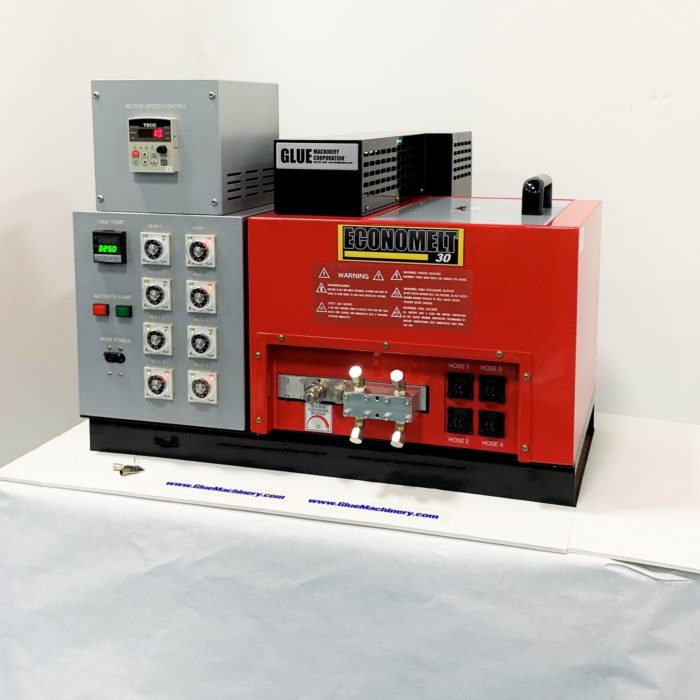

All standard hot melt adhesives. (Quality Bulk Adhesives available from Glue Machinery Corporation™)EconoMelt™ 30 Hot Melt Tank
Simple, low cost industrial hot melt tank with 33 lb capacity, precision gear pump, variable speed all electric drive, ability to operate with two hoses and handguns or automatic guns.
$
Product Videos (Click to View)
Introduction to the Economelt 301 2 3 4 EconoGun Automatic Gluebotic vs Champ 600 15 EconoGun Automatic Gluebotic 26 EconoGun Automatic Gluebotic 37 4 Module Econogun Automatic w Dual Right Angle S nozzle8 Mosaic to Mesh9Product Details:
| Item | EconoMelt™ 30 |
| Tank Capacity | 33lbs |
| Melt Rate | 44lbs/hr |
| Max Gear Pump rate | 0.9 lbs per minute |
| Drive | Variable Speed |
| Temperature Zones | 5 -- Tank, 2 hoses and 2 guns |
| Operating Temp | Max 220°C /428°F |
| Voltage | 220/60Hz/1∮ |
| Viscosity | 2000-50000 cps |
| Dimensions: L,W.H | 27 x 25 x 20 inches |
| Weight | Approx. 205lbs |
| Power | 6140 watts |
| Motor Specs | 1/4HP, 220V, 3∮ |
| Type of Bypass | Manual bypass (flowing rate) |
- Melt tank, nozzle, automatic applicator and heated hose are controlled separately by the individual temperature controller
- Temperature of the hot melt tank is controlled by the P.I.D. temperature controller
- The rest of the system components are controlle dby the electrical temperature controller
