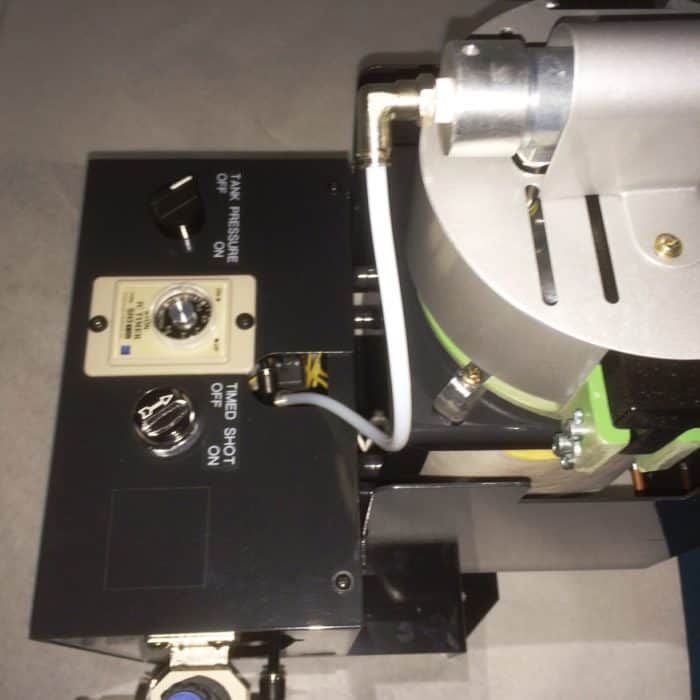

Shot Pot™ Timer for Wax ApplicationsTop View, 6
Shot Pot™ Timer for Wax ApplicationsTop View, Lid Open7
Shot Pot™ Timer for Wax Applications8
Shot Pot™ Timer for Wax Applications9
Shot Pot™ Timer for Wax ApplicationsClearance nozzle to back of machine 7”10
Shot Pot™ Timer for Wax Applications Clearance nozzle to benchtop surface 7”11
Shot Pot™ Timer for Wax Applications12
Shot Pot™ Timer for Wax ApplicationsShot Pot Timer Melt Tank13
Shot Pot™ Timer for Wax Applications14

Compatible With:

Range of waxes

Shot Pot™ Timer for Wax Applications

Foot switch activated benchtop hot melt metering system to apply precise, repeatable wax patterns to components moved under the nozzle.

$

Product Videos (Click to View)

1 Cycling Dots of Wax2 Wax on Wine Bottle3

Product Details:

  • Complete "Turn-key" bench wax melt extrusion system.
  • Foot switch with cable to unit to actuate wax flow.
  • 3.5 lb. hot melt tank capacity.  Teflon lined.
  • 3 to 5 lb. per hour melt rate depending on wax
  • Removable melt grid in bottom of tank.
  • Thermostatic temperature controller
  • Pneumatically adjustable flow control.
  • High Speed valve/module for excellent shut off.
  • Adjustable timer from .1 to 9 seconds for pre-measured wax patterns.
  • Compressed air required: 30-90 psi.
  • Clearance nozzle to benchtop surface 7”Clearance nozzle to back of machine 7”Base can be reversed/ machine will be cantilevered
  • Six month warranty against defective workmanship
  • Method of shipping is UPS.
The Shot Pot Timer™ 1 will increase production speeds dramatically over the manual application of wax with hot melt handguns. Both hands are free to move the component requiring precise dots or lines. Product quality will improve with the Shot Pot Timer 1 as precise patterns of wax are applied only where needed . Finally, wax consumption will be reduced because this machine applies only the quantity of adhesive set by the operator.
